iso::synth::LinkConversionStrategy Class Reference

manages buffer conversions and process calls More...

#include <iso_synth_link_conversion_strategy.h>

Inherits iso::synth::Strategy.

Inherited by iso::synth::ChannelConversionStrategy, iso::synth::FrameConversionStrategy, and iso::synth::RateConversionStrategy.

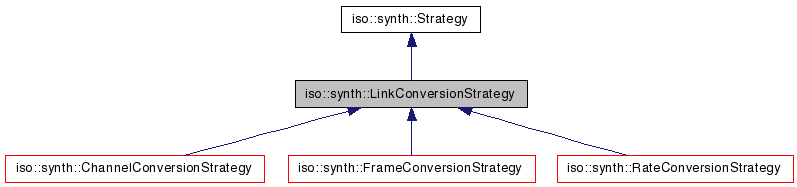

Inheritance diagram for iso::synth::LinkConversionStrategy:

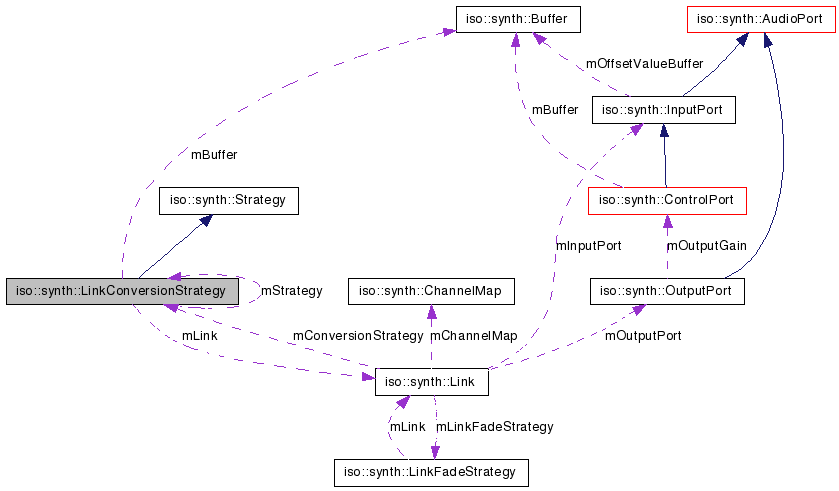

[legend]Collaboration diagram for iso::synth::LinkConversionStrategy:

[legend]List of all members.

Public Member Functions
	LinkConversionStrategy (unsigned int pFrameCount, unsigned int pChannelCount, Link *pLink)
	parameter based constructor
virtual	~LinkConversionStrategy ()
	destructor
LinkConversionStrategy *	nextStrategy ()
	returns next conversion strategy
void	setNextStrategy (LinkConversionStrategy *pStrategy)
	set next conversion strategy
virtual void	process (Buffer *pBuffer)=0
	process buffer
virtual String	info (bool pPropagate=false) const =0
	obtain textual link conversion strategy information
Protected Member Functions
	LinkConversionStrategy ()
Protected Attributes
Buffer *	mBuffer
	internal backup buffer
LinkConversionStrategy *	mStrategy
	next conversion strategy
Link *	mLink
	link, this process strategy is part of

---

Detailed Description

manages buffer conversions and process calls

conversions and process calls

Created by Daniel Bisig on 6/7/06.

---

Constructor & Destructor Documentation

LinkConversionStrategy::LinkConversionStrategy	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		Link *	pLink
	)

parameter based constructor

Parameters:

	pFrameCount	number of frames of internal backup buffer
	pChannelCount	numbder of channels of internal backup buffer
	pLink	link, this link conversion strategy is part of

LinkConversionStrategy::~LinkConversionStrategy

(

)

[virtual]

destructor

LinkConversionStrategy::LinkConversionStrategy

(

)

[protected]

---

Member Function Documentation

LinkConversionStrategy * LinkConversionStrategy::nextStrategy

(

)

returns next conversion strategy

void LinkConversionStrategy::setNextStrategy

(

LinkConversionStrategy *

pStrategy

)

set next conversion strategy

Parameters:

pStrategy

next conversion strategy

each link conversion strategy may possess a next link conversion strategy
process calls propagate from link conversion strategy to next link conversion strategy
when no more link conversion strategy is available, the process call propagates to the output port of the link

virtual void iso::synth::LinkConversionStrategy::process

(

Buffer *

pBuffer

)

[pure virtual]

process buffer

Parameters:

pBuffer

buffer to operate on

process calls propagate from link conversion strategy to next link conversion strategy
when no more link conversion strategy is available, the process call propagates to the output port of the link

Implements iso::synth::Strategy.

Implemented in iso::synth::ChannelConversionStrategy, iso::synth::FrameCopySamplesStrategy, iso::synth::RateRepeatSamplesStrategy, and iso::synth::RateSkipSamplesStrategy.

virtual String iso::synth::LinkConversionStrategy::info

(

bool

pPropagate = false

)

const [pure virtual]

obtain textual link conversion strategy information

Parameters:

pPropagate

if true, the unit calls the info method of the next conversion strategy

Returns:

String containing unit information

Implements iso::synth::Strategy.

Implemented in iso::synth::ChannelMixCombineStrategy, iso::synth::ChannelMixDirectStrategy, iso::synth::ChannelMixDownCombineStrategy, iso::synth::ChannelMixDownDropStrategy, iso::synth::ChannelMixUpDistributeStrategy, iso::synth::ChannelMixUpIgnoreStrategy, iso::synth::FrameConversionStrategy, iso::synth::FrameCopySamplesStrategy, iso::synth::RateConversionStrategy, iso::synth::RateRepeatSamplesStrategy, and iso::synth::RateSkipSamplesStrategy.

---

Member Data Documentation

Buffer* iso::synth::LinkConversionStrategy::mBuffer [protected]

internal backup buffer

LinkConversionStrategy* iso::synth::LinkConversionStrategy::mStrategy [protected]

next conversion strategy

conversion strategies can be linked in series, each one calling the process function of the next conversion strategy

Link* iso::synth::LinkConversionStrategy::mLink [protected]

link, this process strategy is part of

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_link_conversion_strategy.h
• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_link_conversion_strategy.cpp

---
