iso::synth::ChannelConversionStrategy Class Reference

controls conversions between buffers that contain different numbers of channels More...

#include <iso_synth_channel_conversion_strategy.h>

Inherits iso::synth::LinkConversionStrategy.

Inherited by iso::synth::ChannelMixCombineStrategy, iso::synth::ChannelMixDirectStrategy, iso::synth::ChannelMixDownCombineStrategy, iso::synth::ChannelMixDownDropStrategy, iso::synth::ChannelMixUpDistributeStrategy, and iso::synth::ChannelMixUpIgnoreStrategy.

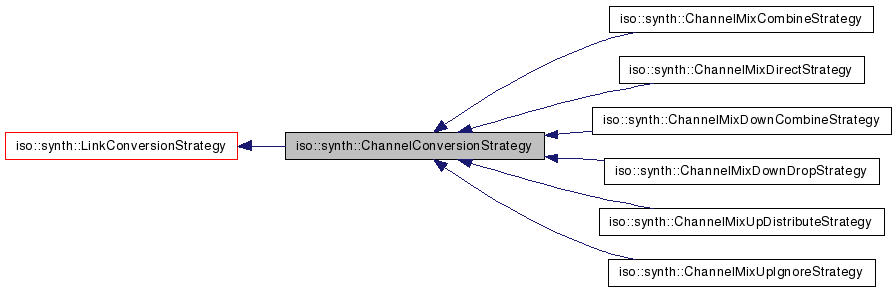

Inheritance diagram for iso::synth::ChannelConversionStrategy:

[legend]Collaboration diagram for iso::synth::ChannelConversionStrategy:

[legend]List of all members.

Public Member Functions
	ChannelConversionStrategy (unsigned int pFrameCount, unsigned int pChannelCount, Link *pLink, ChannelMap *pMap)
	parameter based constructor
virtual	~ChannelConversionStrategy ()
	destructor
ChannelMap *	channelMap ()
	returns channel map /return channel map
virtual void	process (Buffer *pBuffer)
	process buffer
Protected Member Functions
	ChannelConversionStrategy ()
virtual void	convert (Buffer *pBuffer)=0
	buffer conversion
Protected Attributes
ChannelMap *	mChannelMap
	channel map

---

Detailed Description

controls conversions between buffers that contain different numbers of channels

between buffers that contain different numbers of channels

Created by Daniel Bisig on 6/7/06.

---

Constructor & Destructor Documentation

ChannelConversionStrategy::ChannelConversionStrategy	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		Link *	pLink,
		ChannelMap *	pMap
	)

parameter based constructor

Parameters:

	pFrameCount	number of frames of internal backup buffer
	pChannelCount	numbder of channels of internal backup buffer
	pLink	link, this channel conversion strategy is part of
	pMap	channel map

ChannelConversionStrategy::~ChannelConversionStrategy

(

)

[virtual]

destructor

ChannelConversionStrategy::ChannelConversionStrategy

(

)

[protected]

---

Member Function Documentation

ChannelMap * ChannelConversionStrategy::channelMap

(

)

returns channel map /return channel map

void ChannelConversionStrategy::process

(

Buffer *

pBuffer

)

[virtual]

process buffer

Parameters:

pBuffer

buffer to operate on

Implements iso::synth::LinkConversionStrategy.

virtual void iso::synth::ChannelConversionStrategy::convert

(

Buffer *

pBuffer

)

[protected, pure virtual]

buffer conversion

Parameters:

pBuffer

Implemented in iso::synth::ChannelMixCombineStrategy, iso::synth::ChannelMixDirectStrategy, iso::synth::ChannelMixDownCombineStrategy, iso::synth::ChannelMixDownDropStrategy, iso::synth::ChannelMixUpDistributeStrategy, and iso::synth::ChannelMixUpIgnoreStrategy.

---

Member Data Documentation

ChannelMap* iso::synth::ChannelConversionStrategy::mChannelMap [protected]

channel map

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_channel_conversion_strategy.h
• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_channel_conversion_strategy.cpp

---
