iso::synth::RateConversionStrategy Class Reference

handles buffer conversions and process calls when two directly connected units differ in their rate More...

#include <iso_synth_rate_conversion_strategy.h>

Inherits iso::synth::LinkConversionStrategy.

Inherited by iso::synth::RateRepeatSamplesStrategy, and iso::synth::RateSkipSamplesStrategy.

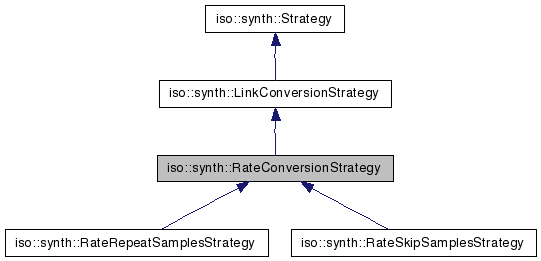

Inheritance diagram for iso::synth::RateConversionStrategy:

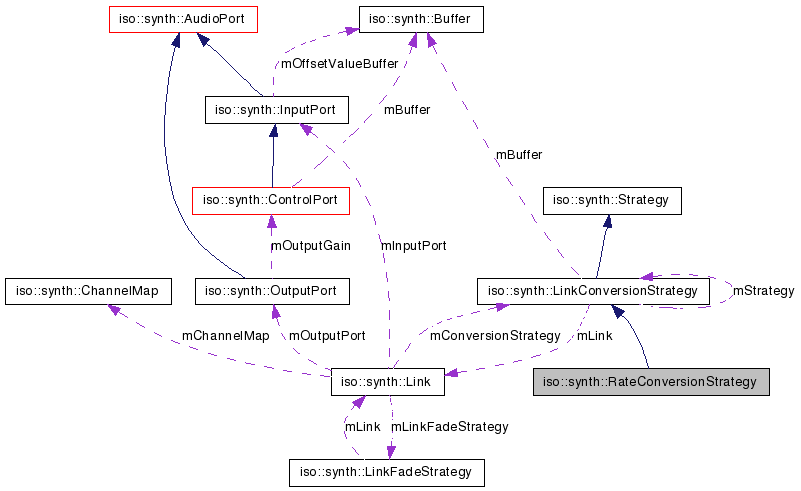

[legend]Collaboration diagram for iso::synth::RateConversionStrategy:

[legend]List of all members.

Public Member Functions
	RateConversionStrategy (unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRateRatio, unsigned int pInProcCount, unsigned int pOutProcCount, Link *pLink)
virtual	~RateConversionStrategy ()
virtual String	info (bool pPropagate) const
	obtain textual rate conversion strategy information
Protected Member Functions
	RateConversionStrategy ()
virtual void	convert (sample *pSourceSamples, sample *pTargetSamples, unsigned int pSampleCount)=0
Protected Attributes
unsigned int	mRateRatio
unsigned int	mInProcCount
unsigned int	mOutProcCount
unsigned int	mCurrentProcCount

---

Detailed Description

handles buffer conversions and process calls when two directly connected units differ in their rate

conversions and process calls when two directly connected units differ in their rate

Created by Daniel Bisig on 6/7/06.

---

Constructor & Destructor Documentation

RateConversionStrategy::RateConversionStrategy	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRateRatio,
		unsigned int	pInProcCount,
		unsigned int	pOutProcCount,
		Link *	pLink
	)

RateConversionStrategy::~RateConversionStrategy

(

)

[virtual]

RateConversionStrategy::RateConversionStrategy

(

)

[protected]

---

Member Function Documentation

String RateConversionStrategy::info

(

bool

pPropagate

)

const [virtual]

obtain textual rate conversion strategy information

Parameters:

pPropagate

if true, the unit calls the info method of the next conversion strategy

Returns:

String containing unit information

Implements iso::synth::LinkConversionStrategy.

Reimplemented in iso::synth::RateRepeatSamplesStrategy, and iso::synth::RateSkipSamplesStrategy.

virtual void iso::synth::RateConversionStrategy::convert	(	sample *	pSourceSamples,
		sample *	pTargetSamples,
		unsigned int	pSampleCount
	)			[protected, pure virtual]

Implemented in iso::synth::RateRepeatSamplesStrategy, and iso::synth::RateSkipSamplesStrategy.

---

Member Data Documentation

unsigned int iso::synth::RateConversionStrategy::mRateRatio [protected]

unsigned int iso::synth::RateConversionStrategy::mInProcCount [protected]

unsigned int iso::synth::RateConversionStrategy::mOutProcCount [protected]

unsigned int iso::synth::RateConversionStrategy::mCurrentProcCount [protected]

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_rate_conversion_strategy.h
• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_rate_conversion_strategy.cpp

---
