iso::synth::FrameConversionStrategy Class Reference

handles buffer conversions and process calls when two directly connected units differ in their frameCount More...

#include <iso_synth_frame_conversion_strategy.h>

Inherits iso::synth::LinkConversionStrategy.

Inherited by iso::synth::FrameCopySamplesStrategy.

Inheritance diagram for iso::synth::FrameConversionStrategy:

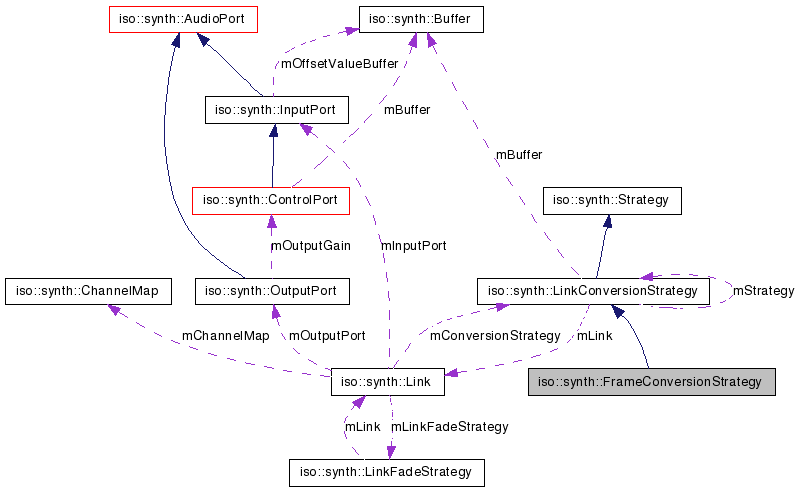

[legend]Collaboration diagram for iso::synth::FrameConversionStrategy:

[legend]List of all members.

Public Member Functions
	FrameConversionStrategy (unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pInProcCount, unsigned int pOutProcCount, Link *pLink)
	parameter based constructor
virtual	~FrameConversionStrategy ()
virtual String	info (bool pPropagate=false) const
	obtain textual frame conversion strategy information
Protected Member Functions
	FrameConversionStrategy ()
virtual void	convert (sample *pSourceSamples, sample *pTargetSamples, unsigned int pSampleCount)=0
Protected Attributes
unsigned int	mInProcCount
unsigned int	mOutProcCount
unsigned int	mCurrentProcCount

---

Detailed Description

handles buffer conversions and process calls when two directly connected units differ in their frameCount

conversions and process calls when two directly connected units differ in their frameCount

Created by Daniel Bisig on 6/7/06.

---

Constructor & Destructor Documentation

FrameConversionStrategy::FrameConversionStrategy	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pInProcCount,
		unsigned int	pOutProcCount,
		Link *	pLink
	)

parameter based constructor

Parameters:

	pFrameCount	number of frames of internal backup buffer
	pChannelCount	number of channels of internal backup buffer
	pInProcCount	number of processing steps that cause a single processing call
	pOutProcCount	number of processing steps per single pcocessing call
	pLink	link, this frame conversion strategy is part of

FrameConversionStrategy::~FrameConversionStrategy

(

)

[virtual]

FrameConversionStrategy::FrameConversionStrategy

(

)

[protected]

---

Member Function Documentation

String FrameConversionStrategy::info

(

bool

pPropagate = false

)

const [virtual]

obtain textual frame conversion strategy information

Parameters:

pPropagate

if true, the unit calls the info method of the next conversion strategy

Returns:

String containing unit information

Implements iso::synth::LinkConversionStrategy.

Reimplemented in iso::synth::FrameCopySamplesStrategy.

virtual void iso::synth::FrameConversionStrategy::convert	(	sample *	pSourceSamples,
		sample *	pTargetSamples,
		unsigned int	pSampleCount
	)			[protected, pure virtual]

Implemented in iso::synth::FrameCopySamplesStrategy.

---

Member Data Documentation

unsigned int iso::synth::FrameConversionStrategy::mInProcCount [protected]

unsigned int iso::synth::FrameConversionStrategy::mOutProcCount [protected]

unsigned int iso::synth::FrameConversionStrategy::mCurrentProcCount [protected]

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_frame_conversion_strategy.h
• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/core/strategy/iso_synth_frame_conversion_strategy.cpp

---
