iso::visual::SceneTransformNode Class Reference

#include <iso_visual_scene_transform_node.h>

Inherited by iso::visual::CameraTransformNode.

Inheritance diagram for iso::visual::SceneTransformNode:

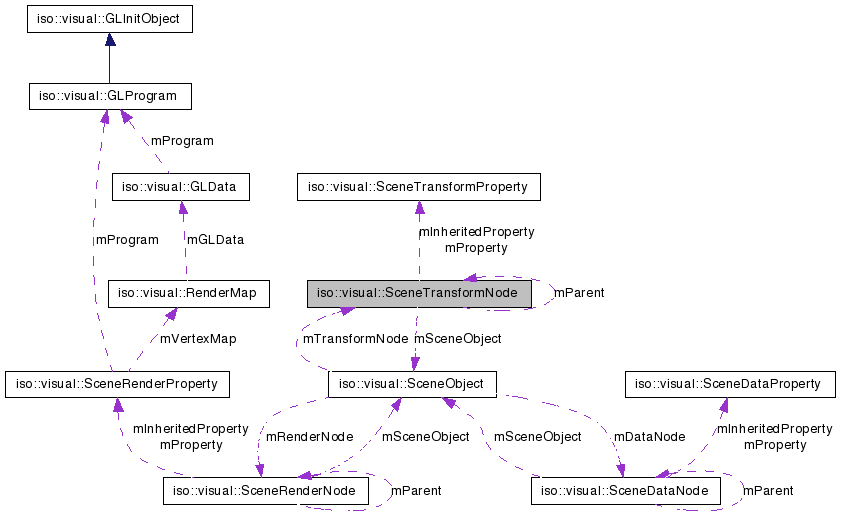

[legend]Collaboration diagram for iso::visual::SceneTransformNode:

[legend]List of all members.

Public Member Functions
	SceneTransformNode (SceneObject *pSceneObject)
	SceneTransformNode (SceneObject *pSceneObject, SceneTransformProperty *pProperty)
	~SceneTransformNode ()
bool	contains (SceneTransformNode *pNode) const
void	add (SceneTransformNode *pNode)
void	remove (SceneTransformNode *pNode)
bool	changed () const
SceneTransformProperty *	property ()
SceneTransformNode *	parent ()
const math::Vector3< real > &	position () const
	return positon (in world coordinates)
const math::Quaternion< real > &	orientation () const
	return orientation (in world coordinates)
const math::Vector3< real > &	scale () const
	return scale (in world coordinates)
const math::Matrix4< real > &	matrix () const
	return transformation matrix (in world coordinates)
const math::Matrix4< real > &	glMatrix () const
	return opengl transformation matrix (in world coordinates)
math::Matrix4< real > &	glMatrix ()
	return opengl transformation matrix (in world coordinates)
void	setPosition (real pX, real pY, real pZ)
	set position (in object coordinates)
void	setPosition (const math::Vector3< real > &pPosition)
	set position (in object coordinates)
void	changePosition (real pX, real pY, real pZ)
	change position (in object coordinates)
void	changePosition (const math::Vector3< real > &pPosition)
	change position (in object coordinates)
void	setOrientationX (real pAngle)
	set orientation around x axis (in object coordinates)
void	setOrientationY (real pAngle)
	set orientation around y axis (in object coordinates)
void	setOrientationZ (real pAngle)
	set orientation around z axis (in object coordinates)
void	setOrientation (const math::Vector3< real > &pAxis, real pAngle)
	set camera orientation (in object coordinates)
void	setOrientation (const math::Quaternion< real > &pOrientation)
	change camera orientation (in object coordinates)
void	changeOrientationX (real pAngle)
	change orientation around x axis (in object coordinates)
void	changeOrientationY (real pAngle)
	change orientation around y axis (in object coordinates)
void	changeOrientationZ (real pAngle)
	change orientation around z axis (in object coordinates)
void	changeOrientation (const math::Vector3< real > &pAxis, real pAngle)
	change camera orientation (in object coordinates)
void	changeOrientation (const math::Quaternion< real > &pOrientation)
	change camera orientation (in object coordinates)
void	setScale (real pScale)
	set uniform scale (in object coordinates)
void	setScale (real pX, real pY, real pZ)
	set nonuniform scale (in object coordinates)
void	setScale (const math::Vector3< real > pScale)
	set nonuniform scale (in object coordinates)
void	changeScale (real pScale)
	change unform scale (in object coordinates)
void	changeScale (real pX, real pY, real pZ)
	change nonuniform scale (in object coordinates)
void	changeScale (const math::Vector3< real > pScale)
	change nonunform scale (in object coordinates)
void	update ()
void	updateWorldCoordinates ()
Protected Attributes
SceneObject *	mSceneObject
SceneTransformProperty *	mProperty
SceneTransformProperty	mInheritedProperty
SceneTransformNode *	mParent
	parent transform node
QList< SceneTransformNode * >	mChildren
	children transform nodes
math::Matrix4< real >	mGLMatrix
	opengl transformation matrix
bool	mChanged
	flag indicating whether world matrix is out of date

---

Constructor & Destructor Documentation

SceneTransformNode::SceneTransformNode

(

SceneObject *

pSceneObject

)

SceneTransformNode::SceneTransformNode	(	SceneObject *	pSceneObject,
		SceneTransformProperty *	pProperty
	)

SceneTransformNode::~SceneTransformNode

(

)

---

Member Function Documentation

bool SceneTransformNode::contains

(

SceneTransformNode *

pNode

)

const

void SceneTransformNode::add

(

SceneTransformNode *

pNode

)

void SceneTransformNode::remove

(

SceneTransformNode *

pNode

)

bool SceneTransformNode::changed

(

)

const

SceneTransformProperty * SceneTransformNode::property

(

)

SceneTransformNode * SceneTransformNode::parent

(

)

const math::Vector3< visual::real > & SceneTransformNode::position

(

)

const

return positon (in world coordinates)

Returns:

world position

const math::Quaternion< visual::real > & SceneTransformNode::orientation

(

)

const

return orientation (in world coordinates)

Returns:

world orientation

const math::Vector3< visual::real > & SceneTransformNode::scale

(

)

const

return scale (in world coordinates)

Returns:

world scale

const math::Matrix4< visual::real > & SceneTransformNode::matrix

(

)

const

return transformation matrix (in world coordinates)

Returns:

world transformation matrix

const math::Matrix4< visual::real > & SceneTransformNode::glMatrix

(

)

const

return opengl transformation matrix (in world coordinates)

Returns:

opengl world transformation matrix

math::Matrix4< visual::real > & SceneTransformNode::glMatrix

(

)

return opengl transformation matrix (in world coordinates)

Returns:

opengl world transformation matrix

void SceneTransformNode::setPosition	(	real	pX,
		real	pY,
		real	pZ
	)

set position (in object coordinates)

Parameters:

	pX	position x
	pY	position y
	pZ	position z

void SceneTransformNode::setPosition

(

const math::Vector3< real > &

pPosition

)

set position (in object coordinates)

Parameters:

pPosition

position

void SceneTransformNode::changePosition	(	real	pX,
		real	pY,
		real	pZ
	)

change position (in object coordinates)

Parameters:

	pX	position x
	pY	position y
	pZ	position z

void SceneTransformNode::changePosition

(

const math::Vector3< real > &

pPosition

)

change position (in object coordinates)

Parameters:

pPosition

position

void SceneTransformNode::setOrientationX

(

real

pAngle

)

set orientation around x axis (in object coordinates)

Parameters:

pAngle

rotation angle

void SceneTransformNode::setOrientationY

(

real

pAngle

)

set orientation around y axis (in object coordinates)

Parameters:

pAngle

rotation angle

void SceneTransformNode::setOrientationZ

(

real

pAngle

)

set orientation around z axis (in object coordinates)

Parameters:

pAngle

rotation angle

void SceneTransformNode::setOrientation	(	const math::Vector3< real > &	pAxis,
		real	pAngle
	)

set camera orientation (in object coordinates)

Parameters:

	pAxis	rotation axis
	pAngle	rotation angle

void SceneTransformNode::setOrientation

(

const math::Quaternion< real > &

pOrientation

)

change camera orientation (in object coordinates)

Parameters:

pOrientation

orientation

void SceneTransformNode::changeOrientationX

(

real

pAngle

)

change orientation around x axis (in object coordinates)

Parameters:

pAngle

rotation angle

void SceneTransformNode::changeOrientationY

(

real

pAngle

)

change orientation around y axis (in object coordinates)

Parameters:

pAngle

rotation angle

void SceneTransformNode::changeOrientationZ

(

real

pAngle

)

change orientation around z axis (in object coordinates)

Parameters:

pAngle

rotation angle

void SceneTransformNode::changeOrientation	(	const math::Vector3< real > &	pAxis,
		real	pAngle
	)

change camera orientation (in object coordinates)

Parameters:

	pAxis	rotation axis
	pAngle	rotation angle

void SceneTransformNode::changeOrientation

(

const math::Quaternion< real > &

pOrientation

)

change camera orientation (in object coordinates)

Parameters:

pOrientation

orientation

void SceneTransformNode::setScale

(

real

pScale

)

set uniform scale (in object coordinates)

Parameters:

pScale

scale

void SceneTransformNode::setScale	(	real	pX,
		real	pY,
		real	pZ
	)

set nonuniform scale (in object coordinates)

Parameters:

	pX	scale x
	pY	scale y
	pZ	scale z

void SceneTransformNode::setScale

(

const math::Vector3< real >

pScale

)

set nonuniform scale (in object coordinates)

Parameters:

pScale

scale

void SceneTransformNode::changeScale

(

real

pScale

)

change unform scale (in object coordinates)

Parameters:

pScale

scale

void SceneTransformNode::changeScale	(	real	pX,
		real	pY,
		real	pZ
	)

change nonuniform scale (in object coordinates)

Parameters:

	pX	scale x
	pY	scale y
	pZ	scale z

void SceneTransformNode::changeScale

(

const math::Vector3< real >

pScale

)

change nonunform scale (in object coordinates)

Parameters:

pScale

scale

void SceneTransformNode::update

(

)

void SceneTransformNode::updateWorldCoordinates

(

)

---

Member Data Documentation

SceneObject* iso::visual::SceneTransformNode::mSceneObject [protected]

SceneTransformProperty* iso::visual::SceneTransformNode::mProperty [protected]

scene object this node belongs to

SceneTransformProperty iso::visual::SceneTransformNode::mInheritedProperty [protected]

SceneTransformNode* iso::visual::SceneTransformNode::mParent [protected]

parent transform node

QList< SceneTransformNode* > iso::visual::SceneTransformNode::mChildren [protected]

children transform nodes

math::Matrix4<real> iso::visual::SceneTransformNode::mGLMatrix [protected]

opengl transformation matrix

bool iso::visual::SceneTransformNode::mChanged [protected]

flag indicating whether world matrix is out of date

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/visual/trunk/code/scene/iso_visual_scene_transform_node.h
• /Users/dbisig/programming/swarms/trunk/visual/trunk/code/scene/iso_visual_scene_transform_node.cpp

---
