iso::synth::WaveTableOscil Class Reference

wavetable oscillator More...

#include <iso_synth_wavetable_oscil.h>

Inherits iso::synth::InputUnit.

Inherited by iso::synth::BLPulseGen, and iso::synth::DCSPulseGen.

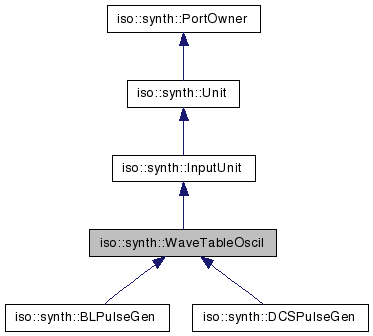

Inheritance diagram for iso::synth::WaveTableOscil:

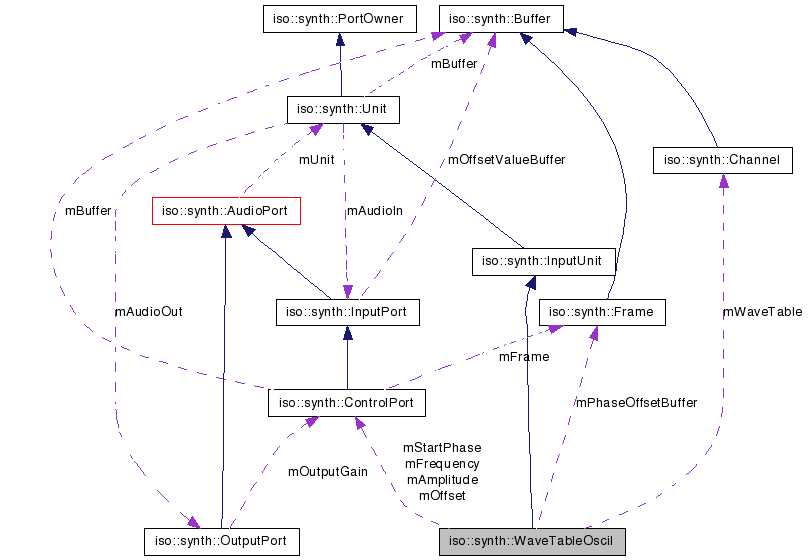

[legend]Collaboration diagram for iso::synth::WaveTableOscil:

[legend]List of all members.


Public Member Functions
	WaveTableOscil (String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableOscil (const String &pName, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableOscil (unsigned int pChannelCount, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableOscil (const String &pName, unsigned int pChannelCount, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableOscil (String pWaveTableName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableOscil (const String &pName, String pWaveTableName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	name and parameter based contructor
	WaveTableOscil (const WaveTableOscil &pUnit)
	copy constructor
	WaveTableOscil (const String &pName, const WaveTableOscil &pUnit)
	name & copy constructor
	WaveTableOscil (const data::Values &pValues) throw (SynthException)
	values based constructor
	~WaveTableOscil ()
	destructor
Channel *	waveTable ()
	returns wave table
void	setWaveTable (String pWaveTableName) throw (SynthException)
	set wavetable
virtual void	process (Buffer *pBuffer) throw (SynthException)
	processes buffer
virtual String	info (bool pPropagate=false, bool pShowPorts=true) const
	obtain textual unit information
Static Public Attributes
static const String	sClassName
	default name
Protected Member Functions
	WaveTableOscil ()
	default constructor
void	init ()
	initializes wavetable and control ports
Protected Attributes
ControlPort *	mFrequency
	frequency control port
ControlPort *	mAmplitude
	amplitude control port
ControlPort *	mStartPhase
	phase control port
ControlPort *	mOffset
	offset control port
Frame *	mPhaseOffsetBuffer
	current phase offsets with regard to start phases
String	mWaveTableName
	wave table name
Channel *	mWaveTable
	wave table buffer
sample	mBaseFrequency
	frequency of wave in wave table at mRate
InterpolationType	mInterpolationType
	interpolation type
sample	mWaveTableSize
	wave table size
sample	mFreqScale
sample	mPhaseScale
	phase scale helper var needed in process() method
Static Protected Attributes
static unsigned int	sUnitCount
	total number of units created so far
Friends
std::ostream &	operator<< (std::ostream &pOstream, const WaveTableOscil &pUnit)
	print unit information

Detailed Description

wavetable oscillator

Unit that loops through a wavetable.
The content of the wavetable is retrieved from the wavetable manager and must be created in advance.
The only exception to this rule are wavetables that are automatically created by the wavetable manager.
These are: sinewave, squarewave, sawtoothwave

ControlPorts
name: frequency defaultValue: 440.0
name: amplitude defaultValue: 1.0
name: phase defaultValue: 0.0
name: offset defaultValue: 0.0

SwitchPorts:
name: active channelCount: 1 defaultValue: 1.0 resizable: false function: setActive

Created by Daniel Bisig on 9/03/06. Adapted by John Flury on 03/10/08 to a design by Beat Frei Copyright 2008 I.S.O. All rights reserved.

Constructor & Destructor Documentation

WaveTableOscil::WaveTableOscil	(	String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableOscil::WaveTableOscil	(	const String &	pName,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pName	unit name
	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableOscil::WaveTableOscil	(	unsigned int	pChannelCount,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableOscil::WaveTableOscil	(	const String &	pName,
		unsigned int	pChannelCount,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableOscil::WaveTableOscil	(	String	pWaveTableName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)			throw (SynthException)

parameter based contructor

Parameters:

	pWaveTableName	name of wavetable or wavetable file
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pInterpolationType	wavetable interpolation type

WaveTableOscil::WaveTableOscil	(	const String &	pName,
		String	pWaveTableName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)			throw (SynthException)

name and parameter based contructor

Parameters:

	pName	unit name
	pWaveTableName	name of wavetable or wavetable file
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pInterpolationType	wavetable interpolation type

WaveTableOscil::WaveTableOscil ( const WaveTableOscil & pUnit )

copy constructor

Parameters:

pUnit

unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

WaveTableOscil::WaveTableOscil	(	const String &	pName,
		const WaveTableOscil &	pUnit
	)

name & copy constructor

Parameters:

	pName	unit name
	pUnit	unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

WaveTableOscil::WaveTableOscil ( const data::Values & pValues ) throw (SynthException)

values based constructor

Parameters:

pValues

unit values

Exceptions:

SynthException

failed to create unit

pValues structure & data types: 0: const String& : unit name 1: String : name of wavetable or wavetable file 2: unsigned int : number of frames 3: unsigned int : number of channels 4: unsigned int : samping rate 5: InterpolationType : wavetable interpolation type

WaveTableOscil::~WaveTableOscil ( )

destructor

WaveTableOscil::WaveTableOscil ( ) [protected]

default constructor

Member Function Documentation

Channel * WaveTableOscil::waveTable ( )

returns wave table

Returns:: wave table

void WaveTableOscil::setWaveTable ( String pWaveTableName ) throw (SynthException)

set wavetable

Parameters:

pWavetableName

wave table name

Exceptions:

SynthException

failed to set wave table

void WaveTableOscil::process ( Buffer * pBuffer ) throw (SynthException) [virtual]

processes buffer

Parameters:

pBuffer

buffer to process

two step processing procedure:
1. calls process function of all it's input ports
2. as soon as these other processing functions return, it changes the buffer according to it's function

Reimplemented from iso::synth::InputUnit.

Reimplemented in iso::synth::BLPulseGen, and iso::synth::DCSPulseGen.

base::String WaveTableOscil::info	(	bool	pPropagate = `false`,
		bool	pShowPorts = `true`
	)			const `[virtual]`

obtain textual unit information

Parameters:

	pPropagate	if true, the unit calls the info methods of its input ports
	pShowPorts	print port information

Returns:: String containing unit information

Reimplemented from iso::synth::InputUnit.

Reimplemented in iso::synth::BLPulseGen, and iso::synth::DCSPulseGen.

void WaveTableOscil::init ( ) [protected]

initializes wavetable and control ports

Reimplemented in iso::synth::BLPulseGen, and iso::synth::DCSPulseGen.

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	pOstream,
		const WaveTableOscil &	pUnit
	)			`[friend]`

print unit information

Member Data Documentation

const base::String WaveTableOscil::sClassName [static]

default name

Reimplemented from iso::synth::InputUnit.

Reimplemented in iso::synth::BLPulseGen, and iso::synth::DCSPulseGen.

unsigned int WaveTableOscil::sUnitCount [static, protected]

total number of units created so far

Reimplemented from iso::synth::InputUnit.

Reimplemented in iso::synth::BLPulseGen, and iso::synth::DCSPulseGen.

ControlPort* iso::synth::WaveTableOscil::mFrequency [protected]

frequency control port

ControlPort* iso::synth::WaveTableOscil::mAmplitude [protected]

amplitude control port

ControlPort* iso::synth::WaveTableOscil::mStartPhase [protected]

phase control port

ControlPort* iso::synth::WaveTableOscil::mOffset [protected]

offset control port

Frame* iso::synth::WaveTableOscil::mPhaseOffsetBuffer [protected]

current phase offsets with regard to start phases

String iso::synth::WaveTableOscil::mWaveTableName [protected]

wave table name

Channel* iso::synth::WaveTableOscil::mWaveTable [protected]

wave table buffer

sample iso::synth::WaveTableOscil::mBaseFrequency [protected]

frequency of wave in wave table at mRate

InterpolationType iso::synth::WaveTableOscil::mInterpolationType [protected]

interpolation type

sample iso::synth::WaveTableOscil::mWaveTableSize [protected]

wave table size

sample iso::synth::WaveTableOscil::mFreqScale [protected]

sample iso::synth::WaveTableOscil::mPhaseScale [protected]

phase scale helper var needed in process() method

The documentation for this class was generated from the following files:

/Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/gen/iso_synth_wavetable_oscil.h
/Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/gen/iso_synth_wavetable_oscil.cpp
