iso::synth::WaveTableEnvelope Class Reference

wavetable envelope class More...

#include <iso_synth_wavetable_envelope.h>

Inherits iso::synth::ProcessUnit, and iso::synth::PortConnectListener.

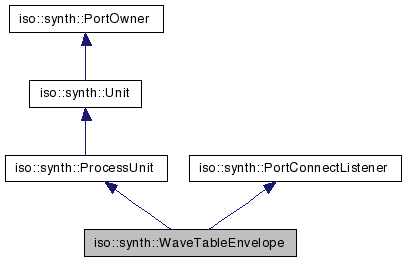

Inheritance diagram for iso::synth::WaveTableEnvelope:

[legend]Collaboration diagram for iso::synth::WaveTableEnvelope:

[legend]List of all members.

Public Member Functions
	WaveTableEnvelope (Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (FunctionType pFunctionType, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (FunctionType pFunctionType, Frame pEnvelope, sample pParameter, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (FunctionType pFunctionType, Frame pEnvelope, Frame pParameters, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (unsigned int pChannelCount, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (unsigned int pChannelCount, FunctionType pFunctionType, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (unsigned int pChannelCount, FunctionType pFunctionType, Frame pEnvelope, sample pParameter, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (unsigned int pChannelCount, FunctionType pFunctionType, Frame pEnvelope, Frame pParameters, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, FunctionType pFunctionType, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, FunctionType pFunctionType, Frame pEnvelope, sample pParameter, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, FunctionType pFunctionType, Frame pEnvelope, Frame pParameters, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, unsigned int pChannelCount, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, unsigned int pChannelCount, FunctionType pFunctionType, Frame pEnvelope, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, unsigned int pChannelCount, FunctionType pFunctionType, Frame pEnvelope, sample pParameter, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, unsigned int pChannelCount, FunctionType pFunctionType, Frame pEnvelope, Frame pParameters, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableEnvelope (const String &pName, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableEnvelope (unsigned int pChannelCount, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableEnvelope (const String &pName, unsigned int pChannelCount, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	WaveTableEnvelope (unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	WaveTableEnvelope (const String &pName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	name and parameter based contructor
	WaveTableEnvelope (const WaveTableEnvelope &pUnit)
	copy constructor
	WaveTableEnvelope (const String &pName, const WaveTableEnvelope &pUnit)
	name & copy constructor
	WaveTableEnvelope (const data::Values &pValues) throw (SynthException)
	values based constructor
	~WaveTableEnvelope ()
	destructor
Channel *	waveTable ()
	returns wave table
void	play (bool pPlay)
	trigger envelope playback or stop
void	setLooping (bool pLooping)
	turn envelope looping on or off
void	setBlocking (bool pBlocking)
	turn envelope blocking on or off
virtual void	process (Buffer *pBuffer) throw (SynthException)
	processes buffer
virtual void	portConnectNotify (AudioPort &pPort1, AudioPort &pPort2)
	port connect notification
virtual String	info (bool pPropagate=false, bool pShowPorts=true) const
	obtain textual unit information
Static Public Attributes
static const String	sClassName
	default name
Protected Member Functions
	WaveTableEnvelope ()
	default constructor
void	init ()
	initializes wavetable and control ports
void	processE (Buffer *pBuffer) throw (SynthException)
	event based envelope control
void	processS (Buffer *pBuffer) throw (SynthException)
	control stream envelope control
Protected Attributes
ControlPort *	mTrigger
	default wavetable size envelope trigger port
ControlPort *	mDuration
	duration control port
ControlPort *	mAmplitude
	amplitude control port
ControlPort *	mOffset
	offset control port
bool	mPlaying
	flag whether envelope is currently playing
bool	mLooping
	flag whether envelope automatically loops
bool	mBlocking
	flag whether envelope can be triggered again before it stopped playing
Frame *	mPhaseOffsetFrame
	current phase offsets
String	mWaveTableName
	wave table name
Channel *	mWaveTable
	wave table buffer
sample	mBaseDuration
	duration of wave in wave table at mRate
InterpolationType	mInterpolationType
	interpolation type
sample	mPrevTriggerValue
	previous trigger value
Static Protected Attributes
static unsigned int	sUnitCount
	total number of units created so far
static FunctionType	sFunctionType
static unsigned int	sWaveTableSize
	default function type
Friends
std::ostream &	operator<< (std::ostream &pOstream, const WaveTableEnvelope &pUnit)
	print unit information

---

Detailed Description

wavetable envelope class

class

A wavetable envelope produces sample values by scanning through a stored wavetable.
The wavetable can be scanned at arbitrary speeds.
The unit creates samples either by truncating or interpolating values from the wavetable.
The unit can act either as an input unit or as a process unit.
When acting as an input unit, it directly sends out the values from the wavetable.
When acting as a process unit, it multiplies the sample values it receives at it's input port by the wavetable values.
In order to apply envelopes, the envelopes need to be triggered.
Triggering can either happen via an event based switch port ("play") or by conntinuous control of a control port("trigger").
These two methods are mutually exclusive.
The event based triggering system is inactive when the trigger control port is connected to a unit or
when this unit is in looping mode.
The envelope is triggered by sending a 1.0 value to the play switch port.
Once the envelope played in this mode, the unit turns itself automatically off.
It turns on again when it receives the next event.
In continuous mode the envelope is typically triggered by the output of a pulse unit, which is connected to the trigger control port.
Depending on this unit's settings, the envelope gets triggered whenever the values at the trigger control port
change from a negative or zero value to a positive value or whenever the trigger control port values are positive.
In this mode, the unit never turns off automatically.
Envelope control via control port is sample accurate.
Envelope control via switch port happens only at the beginning of a new process call.
This unit can be configured in the following ways: Looping can be turned on or off via the "looping" switch port.
When looping is on, envelopes get triggered again and again right after each other as long as the trigger control port delivers positive values
When looping is off, envelopes get only triggered when the trigger control port values change from negative (or zero) to positive.
Blocking can be turned on or off via the "blocking" switch port.
When blocking is on, an envelope can only be triggered again when the envelope has completely finished playing.
When blocking is off, an envelope can always be triggered. This can of course cause discontinuities.


Issues: The behavior of this unit is different when in switch port controlled event mode than in control port controlled continuous mode.
When the unit is event controlled, it sends out zero values whenever an enevelope is not playing.
This is the standard behavior of units. which are inactive.
In continuous mode, it sends out the last wavetable value * sample values arriving at the input port.
For this reason, the unit doesn't necessarily procude zero values when envelopes are not triggered.

ControlPorts
name: trigger defaultValue: 0.0
name: amplitude defaultValue: 1.0
name: duration defaultValue: 1000.0
name: offset defaultValue: 0.0

SwitchPorts:
name: active channelCount: 1 defaultValue: 0.0 resizable: false function: setActive
name: play channelCount: 1 defaultValue: 0.0 resizable: false function: play
name: looping channelCount: 1 defaultValue: 0.0 resizable: false function: setLooping
name: blocking channelCount: 1 defaultValue: 0.0 resizable: false function: setBlocking

Created by Daniel Bisig on 7/17/06. Copyright 2006 Daniel Bisig All rights reserved.

---

Constructor & Destructor Documentation

WaveTableEnvelope::WaveTableEnvelope	(	Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	FunctionType	pFunctionType,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pFunctionType	function type
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	FunctionType	pFunctionType,
		Frame	pEnvelope,
		sample	pParameter,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pFunctionType	function type
	pEnvelope	envelope control points
	pParameter	envelope control parameter
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	FunctionType	pFunctionType,
		Frame	pEnvelope,
		Frame	pParameters,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pFunctionType	function type
	pEnvelope	envelope control points
	pParameters	envelope control parameters
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	unsigned int	pChannelCount,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	unsigned int	pChannelCount,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pFunctionType	function type
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	unsigned int	pChannelCount,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		sample	pParameter,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pFunctionType	function type
	pEnvelope	envelope control points
	pParameter	envelope control parameter
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	unsigned int	pChannelCount,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		Frame	pParameters,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pFunctionType	function type
	pEnvelope	envelope control points
	pParameters	envelope control parameters
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pFunctionType	function type
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		sample	pParameter,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pFunctionType	function type
	pEnvelope	envelope control points
	pParameter	envelope control parameter
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		Frame	pParameters,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pFunctionType	function type
	pEnvelope	envelope control points
	pParameters	envelope control parameters
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		unsigned int	pChannelCount,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		unsigned int	pChannelCount,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pFunctionType	function type
	pEnvelope	envelope control points
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		unsigned int	pChannelCount,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		sample	pParameter,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pFunctionType	function type
	pEnvelope	envelope control points
	pParameter	envelope control parameter
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		unsigned int	pChannelCount,
		FunctionType	pFunctionType,
		Frame	pEnvelope,
		Frame	pParameters,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pFunctionType	function type
	pEnvelope	envelope control points
	pParameters	envelope control parameters
	pInterpolationType	wavetable interpolation type

Exceptions:

failed

to create wavetablenevelope

WaveTableEnvelope::WaveTableEnvelope	(	String	pWaveTableName,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)

parameter based contructor

Parameters:

	pWaveTableName	name of existing wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)

parameter based contructor

Parameters:

	pName	unit name
	pWaveTableName	name of existing wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableEnvelope::WaveTableEnvelope	(	unsigned int	pChannelCount,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pWaveTableName	name of existing wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		unsigned int	pChannelCount,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pWaveTableName	name of existing wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableEnvelope::WaveTableEnvelope	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

parameter based contructor

Parameters:

	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pWaveTableName	name of existing wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = TRUNCATEINTERPOL
	)			throw (SynthException)

name and parameter based contructor

Parameters:

	pName	unit name
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pWaveTableName	name of existing wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

WaveTableEnvelope::WaveTableEnvelope

(

const WaveTableEnvelope &

pUnit

)

copy constructor

Parameters:

pUnit

unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

WaveTableEnvelope::WaveTableEnvelope	(	const String &	pName,
		const WaveTableEnvelope &	pUnit
	)

name & copy constructor

Parameters:

	pName	unit name
	pUnit	unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

WaveTableEnvelope::WaveTableEnvelope

(

const data::Values &

pValues

)

throw (SynthException)

values based constructor

Parameters:

pValues

unit values

Exceptions:

SynthException

failed to create unit

pValues structure & data types: 0: const String& : unit name 1: unsigned int : number of frames 2: unsigned int : number of channels 3: unsigned int : samping rate 4: const String : name of existing wavetable or wavetable file 5: InterpolationType : wavetable interpolation type

WaveTableEnvelope::~WaveTableEnvelope

(

)

destructor

WaveTableEnvelope::WaveTableEnvelope

(

)

[protected]

default constructor

---

Member Function Documentation

Channel * WaveTableEnvelope::waveTable

(

)

returns wave table

Returns:

wave table

void WaveTableEnvelope::play

(

bool

pPlay

)

trigger envelope playback or stop

Parameters:

pPlay

( true: start playback, false: stop playback )

void WaveTableEnvelope::setLooping

(

bool

pLooping

)

turn envelope looping on or off

Parameters:

pLooping

( true: envelope looping on, false: envelope looping off )

void WaveTableEnvelope::setBlocking

(

bool

pBlocking

)

turn envelope blocking on or off

Parameters:

pBlocking

( true: envelope blocking on, false: envelope blocking off )

void WaveTableEnvelope::process

(

Buffer *

pBuffer

)

throw (SynthException) [virtual]

processes buffer

Parameters:

pBuffer

buffer to process

two step processing procedure:
1. calls process function of all it's input ports
2. as soon as these other processing functions return, it changes the buffer according to it's function

Reimplemented from iso::synth::ProcessUnit.

void WaveTableEnvelope::portConnectNotify	(	AudioPort &	pPort1,
		AudioPort &	pPort2
	)			[virtual]

port connect notification

Parameters:

	pPort1	port 1
	pPort2	port 2

Implements iso::synth::PortConnectListener.

base::String WaveTableEnvelope::info	(	bool	pPropagate = false,
		bool	pShowPorts = true
	)			const [virtual]

obtain textual unit information

Parameters:

	pPropagate	if true, the unit calls the info methods of its input ports
	pShowPorts	print port information

Returns:

String containing unit information

Reimplemented from iso::synth::ProcessUnit.

void WaveTableEnvelope::init

(

)

[protected]

initializes wavetable and control ports

void WaveTableEnvelope::processE

(

Buffer *

pBuffer

)

throw (SynthException) [protected]

event based envelope control

void WaveTableEnvelope::processS

(

Buffer *

pBuffer

)

throw (SynthException) [protected]

control stream envelope control

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	pOstream,
		const WaveTableEnvelope &	pUnit
	)			[friend]

print unit information

---

Member Data Documentation

const base::String WaveTableEnvelope::sClassName [static]

default name

Reimplemented from iso::synth::ProcessUnit.

unsigned int WaveTableEnvelope::sUnitCount [static, protected]

total number of units created so far

Reimplemented from iso::synth::ProcessUnit.

FunctionType WaveTableEnvelope::sFunctionType [static, protected]

unsigned int WaveTableEnvelope::sWaveTableSize [static, protected]

default function type

ControlPort* iso::synth::WaveTableEnvelope::mTrigger [protected]

default wavetable size envelope trigger port

ControlPort* iso::synth::WaveTableEnvelope::mDuration [protected]

duration control port

ControlPort* iso::synth::WaveTableEnvelope::mAmplitude [protected]

amplitude control port

ControlPort* iso::synth::WaveTableEnvelope::mOffset [protected]

offset control port

bool iso::synth::WaveTableEnvelope::mPlaying [protected]

flag whether envelope is currently playing

bool iso::synth::WaveTableEnvelope::mLooping [protected]

flag whether envelope automatically loops

bool iso::synth::WaveTableEnvelope::mBlocking [protected]

flag whether envelope can be triggered again before it stopped playing

Frame* iso::synth::WaveTableEnvelope::mPhaseOffsetFrame [protected]

current phase offsets

String iso::synth::WaveTableEnvelope::mWaveTableName [protected]

wave table name

Channel* iso::synth::WaveTableEnvelope::mWaveTable [protected]

wave table buffer

sample iso::synth::WaveTableEnvelope::mBaseDuration [protected]

duration of wave in wave table at mRate

InterpolationType iso::synth::WaveTableEnvelope::mInterpolationType [protected]

interpolation type

sample iso::synth::WaveTableEnvelope::mPrevTriggerValue [protected]

previous trigger value

helper for detecting when an envelope trigger just started

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/env/iso_synth_wavetable_envelope.h
• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/env/iso_synth_wavetable_envelope.cpp

---
