iso::synth::TriggerSampleUnit Class Reference

#include <iso_synth_trigger_sample_unit.h>

Inheritance diagram for iso::synth::TriggerSampleUnit:

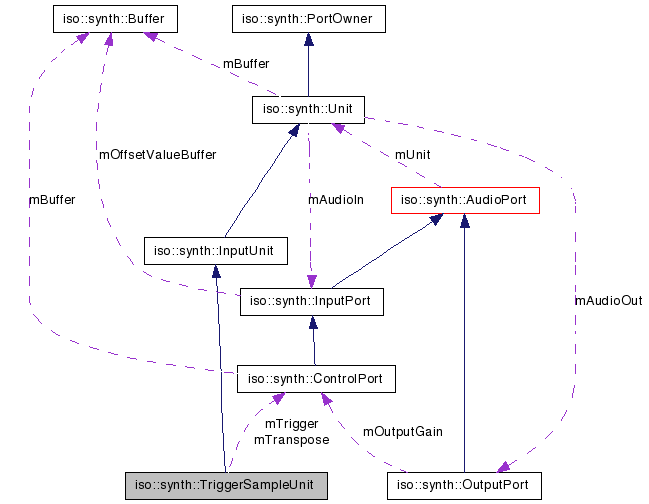

[legend]Collaboration diagram for iso::synth::TriggerSampleUnit:


Public Member Functions
	TriggerSampleUnit () throw (SynthException)
	default constructor
	TriggerSampleUnit (String pFileName) throw (SynthException)
	parameter based contructor
	TriggerSampleUnit (String pFileName, unsigned int pChannelCount) throw (SynthException)
	parameter based contructor
	TriggerSampleUnit (const String &pName, String pFileName) throw (SynthException)
	parameter based contructor
	TriggerSampleUnit (const String &pName, String pFileName, unsigned int pChannelCount) throw (SynthException)
	parameter based contructor
	TriggerSampleUnit (const data::Values &pValues) throw (SynthException)
	values based constructor
	~TriggerSampleUnit () throw (SynthException)
	destructor
void	setSample (String pFileName, unsigned int pTargetChanIdx) throw (SynthException)
	add a sample on the next channel
void	setSample (String pFileName, unsigned int pSrcChanIdx, unsigned int pTargetChanIdx) throw (SynthException)
	add a sample on the next channel
void	setPlayStartPosition (Frame pPlayStartPosition)
	set start positions in ms within the loaded samples (multichannel set method). use "NAN" for the frame values that should be ignored. e.g. Frame(4, NAN, NAN, 0.5, NAN) will only set the third channel to 0.5
void	setPlayStopPosition (Frame pPlayStopPosition)
	set play stop position
virtual void	process (Buffer *pBuffer) throw (SynthException)
	processes buffer
virtual String	info (bool pPropagate=false, bool pShowPorts=true) const
	obtain textual unit information
Static Public Attributes
static const String	sClassName
	default name
Protected Member Functions
void	init (const String &pFileName) throw (SynthException)
	called by constructor
Protected Attributes
QVector< unsigned int >	mPlayStartPosition
	play start position in sound file (in sample values, not ms!)
QVector< unsigned int >	mPlayStopPosition
	play stop position in sound file (in sample values)
QVector< sample >	mAmplitudes
	current amplitude as specified by the last trigger point and possibly updated by decrementing it with mReleaseDecrement
QVector< Channel * >	mSampleBuffers
	sound files audio data per channel (QVector=chan, Channel=Audio data)
QVector< sample >	mReleaseDecrement
	release amplitude decrement per sample (20 * amplitude * -triggerval) / sample_rate explanation: release time in secs = 1 / (20 * -triggervalue) decrement = amplitude / (sample_rate * release_time)
QVector< sample >	mSampleStartFrame
	position within a samplebuffer to play at frame start
ControlPort *	mTrigger
	trigger control port
ControlPort *	mTranspose
	transpose control port
Static Protected Attributes
static unsigned int	sUnitCount
	total number of units created so far

Constructor & Destructor Documentation

TriggerSampleUnit::TriggerSampleUnit ( ) throw (SynthException)

default constructor

TriggerSampleUnit::TriggerSampleUnit ( String pFileName ) throw (SynthException)

parameter based contructor

Parameters:

pFileName

sample file name

TriggerSampleUnit::TriggerSampleUnit	(	String	pFileName,
		unsigned int	pChannelCount
	)			throw (SynthException)

parameter based contructor

Parameters:

	pFileName	sample file name
	pChannelCount	number of channels

TriggerSampleUnit::TriggerSampleUnit	(	const String &	pName,
		String	pFileName
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pFileName	sample file name

TriggerSampleUnit::TriggerSampleUnit	(	const String &	pName,
		String	pFileName,
		unsigned int	pChannelCount
	)			throw (SynthException)

parameter based contructor

Parameters:

	pName	unit name
	pFileName	sample file name
	pChannelCount	number of channels

TriggerSampleUnit::TriggerSampleUnit ( const data::Values & pValues ) throw (SynthException)

values based constructor

Parameters:

pValues

unit values

Exceptions:

SynthException

failed to create unit

pValues structure & data types: 0: const String& : unit name 1: const String& : sample file name 2: unsigned int : number of channels

TriggerSampleUnit::~TriggerSampleUnit ( ) throw (SynthException)

destructor

Member Function Documentation

void TriggerSampleUnit::setSample	(	String	pFileName,
		unsigned int	pTargetChanIdx
	)			throw (SynthException)

add a sample on the next channel

Parameters:

	pFileName	file name of additional sample file
	pTargetChanIdx	selects inro which of the channels the mono file audio data is read into

Exceptions:

SynthException

sample not found

void TriggerSampleUnit::setSample	(	String	pFileName,
		unsigned int	pSrcChanIdx,
		unsigned int	pTargetChanIdx
	)			throw (SynthException)

add a sample on the next channel

Parameters:

	pFileName	file name of additional sample file
	pSrcChanIdx	selects which of the channels from the file should be read out
	pTargetChanIdx	selects inro which of the channels the mono file audio data is read into

Exceptions:

sample

not found

void TriggerSampleUnit::setPlayStartPosition ( Frame pPlayStartPosition )

set start positions in ms within the loaded samples (multichannel set method). use "NAN" for the frame values that should be ignored. e.g. Frame(4, NAN, NAN, 0.5, NAN) will only set the third channel to 0.5

Parameters:

pPlayStartPosition

0: beginning

void TriggerSampleUnit::setPlayStopPosition ( Frame pPlayStopPosition )

set play stop position

Parameters:

pPlayStopPosition

play stop positions (in milisecs) for all channels. use "NAN" for the frame values that should be ignored. e.g. Frame(4, NAN, NAN, 0.5, NAN) will only set the third channel to 0.5

void TriggerSampleUnit::process ( Buffer * pBuffer ) throw (SynthException) [virtual]

processes buffer

Parameters:

pBuffer

buffer to process

Reimplemented from iso::synth::InputUnit.

String TriggerSampleUnit::info	(	bool	pPropagate = `false`,
		bool	pShowPorts = `true`
	)			const `[virtual]`

obtain textual unit information

Parameters:

	pPropagate	if true, the unit calls the info methods of its input ports
	pShowPorts	print port information

Returns:: String containing unit information

Reimplemented from iso::synth::InputUnit.

void TriggerSampleUnit::init ( const String & pFileName ) throw (SynthException) [protected]

called by constructor

Parameters:

pFileName

sample file name

Exceptions:

SynthException

failed to initialize unit

Member Data Documentation

const String TriggerSampleUnit::sClassName [static]

default name

Reimplemented from iso::synth::InputUnit.

unsigned int TriggerSampleUnit::sUnitCount [static, protected]

total number of units created so far

Reimplemented from iso::synth::InputUnit.

QVector<unsigned int> iso::synth::TriggerSampleUnit::mPlayStartPosition [protected]

play start position in sound file (in sample values, not ms!)

QVector<unsigned int> iso::synth::TriggerSampleUnit::mPlayStopPosition [protected]

play stop position in sound file (in sample values)

QVector<sample> iso::synth::TriggerSampleUnit::mAmplitudes [protected]

current amplitude as specified by the last trigger point and possibly updated by decrementing it with mReleaseDecrement

QVector<Channel*> iso::synth::TriggerSampleUnit::mSampleBuffers [protected]

sound files audio data per channel (QVector=chan, Channel=Audio data)

QVector<sample> iso::synth::TriggerSampleUnit::mReleaseDecrement [protected]

release amplitude decrement per sample (20 * amplitude * -triggerval) / sample_rate explanation: release time in secs = 1 / (20 * -triggervalue)
decrement = amplitude / (sample_rate * release_time)

QVector<sample> iso::synth::TriggerSampleUnit::mSampleStartFrame [protected]

position within a samplebuffer to play at frame start

ControlPort* iso::synth::TriggerSampleUnit::mTrigger [protected]

trigger control port

ControlPort* iso::synth::TriggerSampleUnit::mTranspose [protected]

transpose control port

The documentation for this class was generated from the following files:

/Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/gen/iso_synth_trigger_sample_unit.h
/Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/gen/iso_synth_trigger_sample_unit.cpp

Generated on Fri Feb 25 14:18:45 2011 for synth by

1.5.1
