iso::synth::PulseToValueUnit Class Reference

PulseToValueUnit pulse to value unit class. More...

#include <iso_synth_pulse_to_value_unit.h>

Inherits iso::synth::ProcessUnit.

Inheritance diagram for iso::synth::PulseToValueUnit:

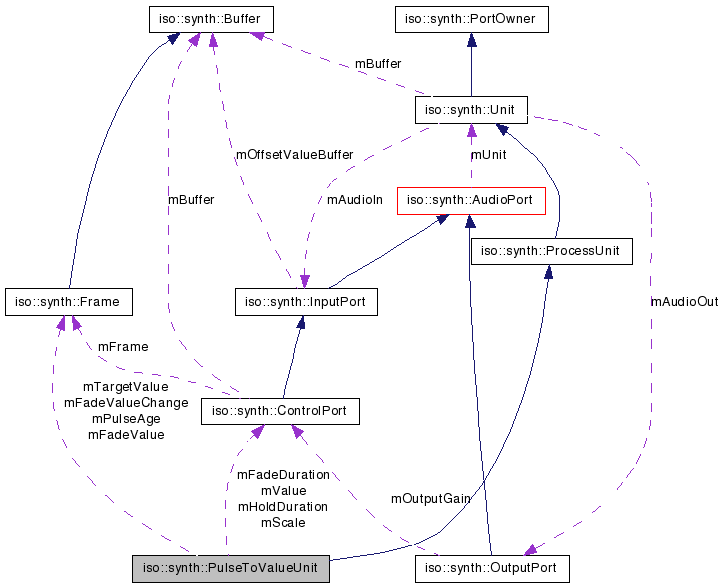

[legend]Collaboration diagram for iso::synth::PulseToValueUnit:

[legend]List of all members.

Public Member Functions
	PulseToValueUnit ()
	default constructor
	PulseToValueUnit (const String &pName)
	parameter based contructor
	PulseToValueUnit (unsigned int pChannelCount)
	parameter based contructor
	PulseToValueUnit (const String &pName, unsigned int pChannelCount)
	parameter based contructor
	PulseToValueUnit (unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate) throw (SynthException)
	parameter based contructor
	PulseToValueUnit (const String &pName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate) throw (SynthException)
	name and parameter based contructor
	PulseToValueUnit (const PulseToValueUnit &pUnit)
	copy constructor
	PulseToValueUnit (const String &pName, const PulseToValueUnit &pUnit)
	name & copy constructor
	PulseToValueUnit (const data::Values &pValues) throw (SynthException)
	values based constructor
	~PulseToValueUnit ()
	destructor
virtual void	process (Buffer *pBuffer) throw (SynthException)
	processes buffer
virtual String	info (bool pPropagate=false, bool pShowPorts=true) const
	obtain textual unit information
Static Public Attributes
static const String	sClassName
	default name
Protected Member Functions
void	init ()
	initializes wavetable and control ports
Protected Attributes
ControlPort *	mValue
	value control port
ControlPort *	mHoldDuration
	value hold duration control port
ControlPort *	mFadeDuration
	value fade duration control port
ControlPort *	mScale
	value scale control port
Frame	mTargetValue
	target value
Frame	mFadeValueChange
	fade value change
Frame	mFadeValue
	fade value
Frame	mPulseAge
	time (in milisecs) since last pulse
sample	frameDuration
	frame duration in milisecs
Static Protected Attributes
static unsigned int	sUnitCount
	total number of units created so far
Friends
std::ostream &	operator<< (std::ostream &pOstream, const PulseToValueUnit &pUnit)
	print unit information

---

Detailed Description

PulseToValueUnit pulse to value unit class.

value unit class

This unit transforms single sample pulses created by a pulse unit into continuous values.
These values may then be used to adjust control ports of other units.
The combination of pulse unit and pulse to value unit serves as a sample accurate complement of the normal event system.
The pulse to value unit can be configured in differed ways. Values can either be fixed or propertional to the pulse heigt, depending on the setting of the scale control port.
A scale value of < 0.0 means, values created by the pulse to value unit are fixed and independent of the pulse amplitudes received.
Scale values >= 0.0 cause the pulse values to scale in correspondence with the pulse amplitudes.
Values created by the pulse to value unit can linearly fade from previous values.
The duration of these fades is controlled by the fadeDuration control port.
In addition, values my be hold for a certain duration.
The holdDuration control port controls for how long values are hold.
A holdDuration value of -1.0 cases a value to be hold up to the next pulse.


ControlPorts
name: value defaultValue: 1.0
name: holdDuration defaultValue: 0.0
name: fadeDuration defaultValue: 0.0
name: scale defaultValue: -1.0

SwitchPorts:
name: active channelCount: 1 defaultValue: 1.0 resizable: false function: setActive


Created by Daniel Bisig on 6/8/07.

---

Constructor & Destructor Documentation

PulseToValueUnit::PulseToValueUnit

(

)

default constructor

PulseToValueUnit::PulseToValueUnit

(

const String &

pName

)

parameter based contructor

Parameters:

pName

unit name

PulseToValueUnit::PulseToValueUnit

(

unsigned int

pChannelCount

)

parameter based contructor

Parameters:

pChannelCount

number of channels

PulseToValueUnit::PulseToValueUnit	(	const String &	pName,
		unsigned int	pChannelCount
	)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels

PulseToValueUnit::PulseToValueUnit	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate
	)			throw (SynthException)

parameter based contructor

Parameters:

	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate

PulseToValueUnit::PulseToValueUnit	(	const String &	pName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate
	)			throw (SynthException)

name and parameter based contructor

Parameters:

	pName	unit name
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate

PulseToValueUnit::PulseToValueUnit

(

const PulseToValueUnit &

pUnit

)

copy constructor

Parameters:

pUnit

unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

PulseToValueUnit::PulseToValueUnit	(	const String &	pName,
		const PulseToValueUnit &	pUnit
	)

name & copy constructor

Parameters:

	pName	unit name
	pUnit	unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

PulseToValueUnit::PulseToValueUnit

(

const data::Values &

pValues

)

throw (SynthException)

values based constructor

Parameters:

pValues

unit values

Exceptions:

SynthException

failed to create unit

pValues structure & data types: 0: const String& : unit name 1: unsigned int : number of frames 2: unsigned int : number of channels 3: unsigned int : samping rate

PulseToValueUnit::~PulseToValueUnit

(

)

destructor

---

Member Function Documentation

void PulseToValueUnit::process

(

Buffer *

pBuffer

)

throw (SynthException) [virtual]

processes buffer

Parameters:

pBuffer

buffer to process

Reimplemented from iso::synth::ProcessUnit.

String PulseToValueUnit::info	(	bool	pPropagate = false,
		bool	pShowPorts = true
	)			const [virtual]

obtain textual unit information

Parameters:

	pPropagate	if true, the unit calls the info methods of its input ports
	pShowPorts	print port information

Returns:

String containing unit information

Reimplemented from iso::synth::ProcessUnit.

void PulseToValueUnit::init

(

)

[protected]

initializes wavetable and control ports

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	pOstream,
		const PulseToValueUnit &	pUnit
	)			[friend]

print unit information

---

Member Data Documentation

const String PulseToValueUnit::sClassName [static]

default name

Reimplemented from iso::synth::ProcessUnit.

unsigned int PulseToValueUnit::sUnitCount [static, protected]

total number of units created so far

Reimplemented from iso::synth::ProcessUnit.

ControlPort* iso::synth::PulseToValueUnit::mValue [protected]

value control port

ControlPort* iso::synth::PulseToValueUnit::mHoldDuration [protected]

value hold duration control port

ControlPort* iso::synth::PulseToValueUnit::mFadeDuration [protected]

value fade duration control port

ControlPort* iso::synth::PulseToValueUnit::mScale [protected]

value scale control port

Frame iso::synth::PulseToValueUnit::mTargetValue [protected]

target value

Frame iso::synth::PulseToValueUnit::mFadeValueChange [protected]

fade value change

Frame iso::synth::PulseToValueUnit::mFadeValue [protected]

fade value

Frame iso::synth::PulseToValueUnit::mPulseAge [protected]

time (in milisecs) since last pulse

sample iso::synth::PulseToValueUnit::frameDuration [protected]

frame duration in milisecs

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/util/iso_synth_pulse_to_value_unit.h
• /Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/util/iso_synth_pulse_to_value_unit.cpp

---
