iso::synth::MultiDelayUnit Class Reference

manages several taps per ringbuffer More...

#include <iso_synth_multi_delay_unit.h>

Inherits iso::synth::ProcessUnit.

Inheritance diagram for iso::synth::MultiDelayUnit:

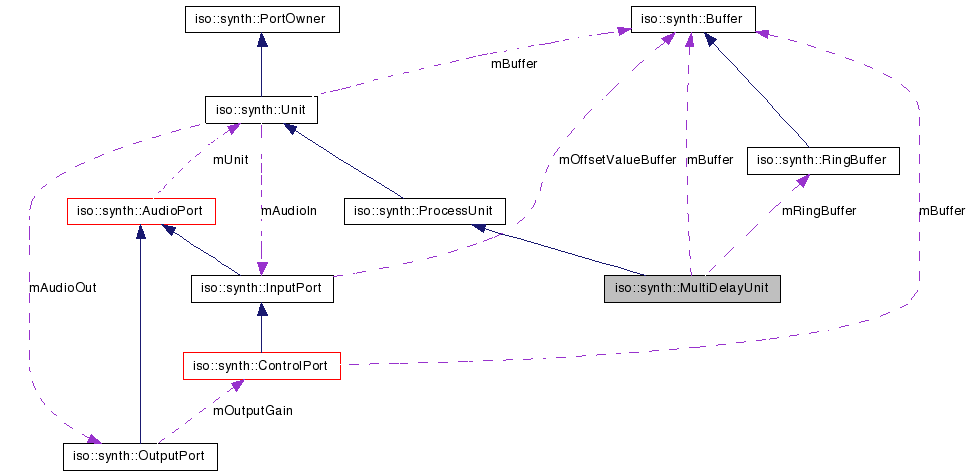

[legend]Collaboration diagram for iso::synth::MultiDelayUnit:

[legend]List of all members.

Public Member Functions
	MultiDelayUnit (float pMaxDelay, unsigned int pTapCount)
	parameter based contructor
	MultiDelayUnit (const String &pName, float pMaxDelay, unsigned int pTapCount)
	parameter based contructor
	MultiDelayUnit (unsigned int pChannelCount, float pMaxDelay, unsigned int pTapCount)
	parameter based contructor
	MultiDelayUnit (const String &pName, unsigned int pChannelCount, float pMaxDelay, unsigned int pTapCount)
	parameter based contructor
	MultiDelayUnit (unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, float pMaxDelay, unsigned int pTapCount)
	parameter based contructor
	MultiDelayUnit (const String &pName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, float pMaxDelay, unsigned int pTapCount)
	name and parameter based contructor
	MultiDelayUnit (const MultiDelayUnit &pUnit)
	copy constructor
	MultiDelayUnit (const String &pName, const MultiDelayUnit &pUnit)
	name & copy constructor
	MultiDelayUnit (const data::Values &pValues) throw (SynthException)
	values based constructor
	~MultiDelayUnit ()
	destructor
void	addTaps (unsigned int pTapCount)
	add further taps
void	setTapPositionAutoIncrement (bool pTapPositionAutoIncrement)
	set tap position auto increment
virtual void	process (Buffer *pBuffer=NULL) throw (SynthException)
	processes buffer
virtual void	processFM (Buffer *pBuffer=NULL)
	processes buffer (control port frame mode)
virtual void	processBM (Buffer *pBuffer=NULL)
	processes buffer (control port buffer mode)
virtual String	info (bool pPropagate=false, bool pShowPorts=true) const
	obtain textual unit information
Static Public Attributes
static const String	sClassName
	default name
Protected Member Functions
void	init (unsigned int pTapCount)
	create internal delayUnits, initialized switch ports
Protected Attributes
RingBuffer	mRingBuffer
	ringbuffer
QVector< DelayUnit * >	mDelayUnits
	internal delay units
Buffer *	mBuffer
	internal buffer
Static Protected Attributes
static unsigned int	sUnitCount
	total number of units created so far
Friends
std::ostream &	operator<< (std::ostream &pOstream, const MultiDelayUnit &pUnit)
	print unit information

---

Detailed Description

manages several taps per ringbuffer

taps per ringbuffer

Created by Daniel Bisig on 08/15/06.

---

Constructor & Destructor Documentation

MultiDelayUnit::MultiDelayUnit	(	float	pMaxDelay,
		unsigned int	pTapCount
	)

parameter based contructor

Parameters:

	pMaxDelay	maximum delay (milisecs)
	pTapCount	number of taps into ringbuffer

MultiDelayUnit::MultiDelayUnit	(	const String &	pName,
		float	pMaxDelay,
		unsigned int	pTapCount
	)

parameter based contructor

Parameters:

	pName	unit name
	pMaxDelay	maximum delay (milisecs)
	pTapCount	number of taps into ringbuffer

MultiDelayUnit::MultiDelayUnit	(	unsigned int	pChannelCount,
		float	pMaxDelay,
		unsigned int	pTapCount
	)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pMaxDelay	maximum delay (milisecs)
	pTapCount	number of taps into ringbuffer

MultiDelayUnit::MultiDelayUnit	(	const String &	pName,
		unsigned int	pChannelCount,
		float	pMaxDelay,
		unsigned int	pTapCount
	)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pMaxDelay	maximum delay (milisecs)
	pTapCount	number of taps into ringbuffer

MultiDelayUnit::MultiDelayUnit	(	unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		float	pMaxDelay,
		unsigned int	pTapCount
	)

parameter based contructor

Parameters:

	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pMaxDelay	maximum delay (milisecs)
	pTapCount	number of taps into ringbuffer

Exceptions:

SynthException

unit ringbuffer channelcount mismatch

MultiDelayUnit::MultiDelayUnit	(	const String &	pName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		float	pMaxDelay,
		unsigned int	pTapCount
	)

name and parameter based contructor

Parameters:

	pName	unit name
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pMaxDelay	maximum delay (milisecs)
	pTapCount	number of taps into ringbuffer

Exceptions:

SynthException

unit ringbuffer channelcount mismatch

MultiDelayUnit::MultiDelayUnit

(

const MultiDelayUnit &

pUnit

)

copy constructor

Parameters:

pUnit

unit to copy properties from

MultiDelayUnit::MultiDelayUnit	(	const String &	pName,
		const MultiDelayUnit &	pUnit
	)

name & copy constructor

Parameters:

	pName	unit name
	pUnit	unit to copy properties from

MultiDelayUnit::MultiDelayUnit

(

const data::Values &

pValues

)

throw (SynthException)

values based constructor

Parameters:

pValues

unit values

Exceptions:

SynthException

failed to create unit

pValues structure & data types: 0: const String& : unit name 1: unsigned int : number of frames 2: unsigned int : number of channels 3: unsigned int : samping rate 4: float : max delay 5: unsigned int : tap count

MultiDelayUnit::~MultiDelayUnit

(

)

destructor

---

Member Function Documentation

void MultiDelayUnit::addTaps

(

unsigned int

pTapCount

)

add further taps

Parameters:

pTapCount

number of additional taps

void MultiDelayUnit::setTapPositionAutoIncrement

(

bool

pTapPositionAutoIncrement

)

set tap position auto increment

Parameters:

pTapPositionAutoIncrement

tap position auto increment

void MultiDelayUnit::process

(

Buffer *

pBuffer = NULL

)

throw (SynthException) [virtual]

processes buffer

Parameters:

pBuffer

buffer to process

Reimplemented from iso::synth::ProcessUnit.

void MultiDelayUnit::processFM

(

Buffer *

pBuffer = NULL

)

[virtual]

processes buffer (control port frame mode)

Parameters:

pBuffer

buffer to process

void MultiDelayUnit::processBM

(

Buffer *

pBuffer = NULL

)

[virtual]

processes buffer (control port buffer mode)

Parameters:

pBuffer

buffer to process

base::String MultiDelayUnit::info	(	bool	pPropagate = false,
		bool	pShowPorts = true
	)			const [virtual]

obtain textual unit information

Parameters:

	pPropagate	if true, the unit calls the info methods of its input ports
	pShowPorts	print port information

Returns:

String containing unit information

Reimplemented from iso::synth::ProcessUnit.

void MultiDelayUnit::init

(

unsigned int

pTapCount

)

[protected]

create internal delayUnits, initialized switch ports

Parameters:

pTapCount

number of delayUnits to create

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	pOstream,
		const MultiDelayUnit &	pUnit
	)			[friend]

print unit information

---

Member Data Documentation

const base::String MultiDelayUnit::sClassName [static]

default name

Reimplemented from iso::synth::ProcessUnit.

unsigned int MultiDelayUnit::sUnitCount [static, protected]

total number of units created so far

Reimplemented from iso::synth::ProcessUnit.

RingBuffer iso::synth::MultiDelayUnit::mRingBuffer [protected]

ringbuffer

QVector<DelayUnit*> iso::synth::MultiDelayUnit::mDelayUnits [protected]

internal delay units

Buffer* iso::synth::MultiDelayUnit::mBuffer [protected]

internal buffer

Reimplemented from iso::synth::Unit.

---
