iso::synth::FMUnit

iso::synth::FMUnit Class Reference

frequency modulation unit More...

#include <iso_synth_fm_unit.h>

Inherits iso::synth::InputUnit.

Inheritance diagram for iso::synth::FMUnit:

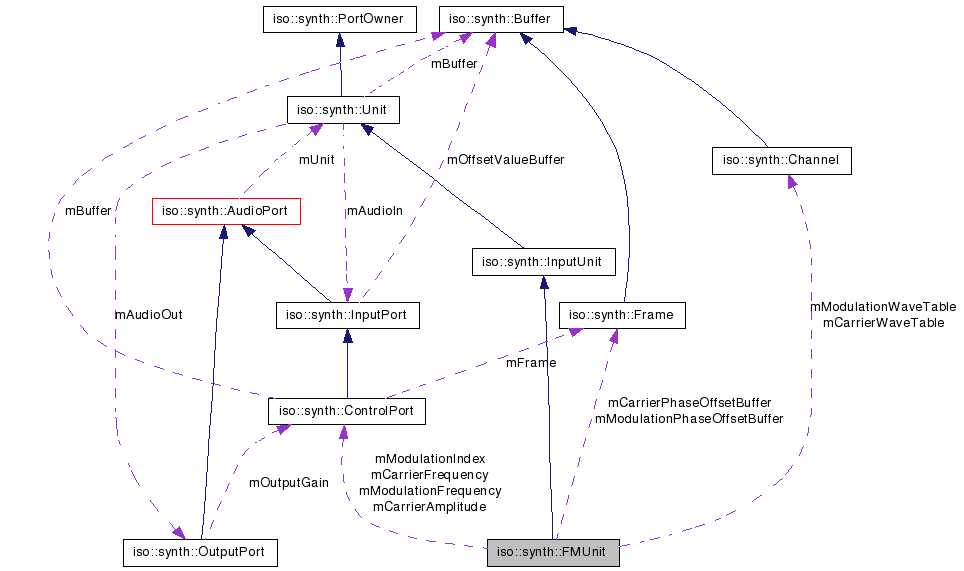

[legend]Collaboration diagram for iso::synth::FMUnit:

[legend]List of all members.


Public Member Functions
	FMUnit (String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (const String &pName, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (unsigned int pChannelCount, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (const String &pName, unsigned int pChannelCount, String pWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (String pWaveTableName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	FMUnit (const String &pName, String pWaveTableName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	name and parameter based contructor
	FMUnit (String pCarrierWaveTableName, String pModulatorWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (const String &pName, String pCarrierWaveTableName, String pModulatorWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (unsigned int pChannelCount, String pCarrierWaveTableName, String pModulatorWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (const String &pName, unsigned int pChannelCount, String pCarrierWaveTableName, String pModulatorWaveTableName, InterpolationType pInterpolationType=TRUNCATEINTERPOL)
	parameter based contructor
	FMUnit (String pCarrierWaveTableName, String pModulatorWaveTableName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	parameter based contructor
	FMUnit (const String &pName, String pCarrierWaveTableName, String pModulatorWaveTableName, unsigned int pFrameCount, unsigned int pChannelCount, unsigned int pRate, InterpolationType pInterpolationType=TRUNCATEINTERPOL) throw (SynthException)
	name and parameter based contructor
	FMUnit (const FMUnit &pUnit)
	copy constructor
	FMUnit (const String &pName, const FMUnit &pUnit)
	name & copy constructor
	FMUnit (const data::Values &pValues) throw (SynthException)
	values based constructor
	~FMUnit ()
	destructor
Channel *	carrierWaveTable ()
	returns carrier wave table
Channel *	modulationWaveTable ()
	returns modulation wave table
void	setWaveTable (String pWaveTableName) throw (SynthException)
	set carrier and modulation wavetable
void	setCarrierWaveTable (String pWaveTableName) throw (SynthException)
	set carrier wavetable
void	setModulationWaveTable (String pWaveTableName) throw (SynthException)
	set modulation wavetable
virtual void	process (Buffer *pBuffer) throw (SynthException)
	processes buffer
virtual String	info (bool pPropagate=false, bool pShowPorts=true) const
	obtain textual unit information
Static Public Attributes
static const String	sClassName
	default name
Protected Member Functions
	FMUnit ()
	default constructor
void	init ()
	initializes wavetable and control ports
Protected Attributes
ControlPort *	mCarrierFrequency
	carrier frequency control port
ControlPort *	mCarrierAmplitude
	carrier amplitude control port
ControlPort *	mModulationFrequency
	modulation frequency control port
ControlPort *	mModulationIndex
	modulation index port
Frame *	mCarrierPhaseOffsetBuffer
	current carrier phase offsets
Frame *	mModulationPhaseOffsetBuffer
	current modulation phase offsets
String	mCarrierWaveTableName
	carrier wave table name
String	mModulationWaveTableName
	modulation wave table name
Channel *	mCarrierWaveTable
	carrier wave table buffer
Channel *	mModulationWaveTable
	modulation wave table buffer
sample	mCarrierBaseFrequency
	carrier frequency of wave in carrier wave table at mRate
sample	mModulationBaseFrequency
	modulation frequency of wave in modulation wave table at mRate
InterpolationType	mInterpolationType
	interpolation type
sample	mCarrierWaveTableSize
	carrier wave table size
sample	mModulationWaveTableSize
	modulation wave table size
sample	mCarrierFreqScale
sample	mModulationFreqScale
Static Protected Attributes
static unsigned int	sUnitCount
	total number of units created so far
Friends
std::ostream &	operator<< (std::ostream &pOstream, const FMUnit &pUnit)
	print unit information

Detailed Description

frequency modulation unit

unit

A unit that combines a carrier and modulation oscillator and provides an modulation index control port.
The oscillator and the modulation both refer to their own wavetables.
The content of the wavetables is retrieved from the wavetable manager and must be created in advance.
The only exception to this rule are wavetables that are automatically created by the wavetable manager.
These are: sinewave, squarewave, sawtoothwave

ControlPorts
name: carrierFrequency defaultValue: 440.0
name: carrierAmplitude defaultValue: 1.0
name: modulationAmplitude defaultValue: 100.0
name: modulationIndex defaultValue: 1.0

SwitchPorts:
name: active channelCount: 1 defaultValue: 1.0 resizable: false function: setActive

Created by Daniel Bisig on 11/07/08. Copyright 2008 I.S.O. All rights reserved.

Constructor & Destructor Documentation

FMUnit::FMUnit	(	String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

same wavetable is used for carrier and modulation

FMUnit::FMUnit	(	const String &	pName,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pName	unit name
	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

same wavetable is used for carrier and modulation

FMUnit::FMUnit	(	unsigned int	pChannelCount,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	const String &	pName,
		unsigned int	pChannelCount,
		String	pWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pWaveTableName	name of wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	String	pWaveTableName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)			throw (SynthException)

parameter based contructor

Parameters:

	pWaveTableName	name of wavetable or wavetable file
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	const String &	pName,
		String	pWaveTableName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)			throw (SynthException)

name and parameter based contructor

Parameters:

	pName	unit name
	pWaveTableName	name of wavetable or wavetable file
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	String	pCarrierWaveTableName,
		String	pModulatorWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pCarrierWaveTableName	name of carrier wavetable or wavetable file
	pModulatorWaveTableName	name of modulation wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

same wavetable is used for carrier and modulation

FMUnit::FMUnit	(	const String &	pName,
		String	pCarrierWaveTableName,
		String	pModulatorWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pName	unit name
	pCarrierWaveTableName	name of carrier wavetable or wavetable file
	pModulatorWaveTableName	name of modulation wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

same wavetable is used for carrier and modulation

FMUnit::FMUnit	(	unsigned int	pChannelCount,
		String	pCarrierWaveTableName,
		String	pModulatorWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pChannelCount	number of channels
	pCarrierWaveTableName	name of carrier wavetable or wavetable file
	pModulatorWaveTableName	name of modulation wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	const String &	pName,
		unsigned int	pChannelCount,
		String	pCarrierWaveTableName,
		String	pModulatorWaveTableName,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)

parameter based contructor

Parameters:

	pName	unit name
	pChannelCount	number of channels
	pCarrierWaveTableName	name of carrier wavetable or wavetable file
	pModulatorWaveTableName	name of modulation wavetable or wavetable file
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	String	pCarrierWaveTableName,
		String	pModulatorWaveTableName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)			throw (SynthException)

parameter based contructor

Parameters:

	pCarrierWaveTableName	name of carrier wavetable or wavetable file
	pModulatorWaveTableName	name of modulation wavetable or wavetable file
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit	(	const String &	pName,
		String	pCarrierWaveTableName,
		String	pModulatorWaveTableName,
		unsigned int	pFrameCount,
		unsigned int	pChannelCount,
		unsigned int	pRate,
		InterpolationType	pInterpolationType = `TRUNCATEINTERPOL`
	)			throw (SynthException)

name and parameter based contructor

Parameters:

	pName	unit name
	pCarrierWaveTableName	name of carrier wavetable or wavetable file
	pModulatorWaveTableName	name of modulation wavetable or wavetable file
	pFrameCount	number of frames
	pChannelCount	number of channels
	pRate	samping rate
	pInterpolationType	wavetable interpolation type

FMUnit::FMUnit ( const FMUnit & pUnit )

copy constructor

Parameters:

pUnit

unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

FMUnit::FMUnit	(	const String &	pName,
		const FMUnit &	pUnit
	)

name & copy constructor

Parameters:

	pName	unit name
	pUnit	unit to copy properties from

constructor copies frameCount, channelCount and rate but not unit name

FMUnit::FMUnit ( const data::Values & pValues ) throw (SynthException)

values based constructor

Parameters:

pValues

unit values

Exceptions:

SynthException

failed to create unit

pValues structure & data types: 0: const String& : unit name 1: String : name of carrier wavetable or wavetable file 2: String : name of modulation wavetable or wavetable file 3: unsigned int : number of frames 4: unsigned int : number of channels 5: unsigned int : samping rate 6: InterpolationType : wavetable interpolation type

FMUnit::~FMUnit ( )

destructor

FMUnit::FMUnit ( ) [protected]

default constructor

Member Function Documentation

Channel * FMUnit::carrierWaveTable ( )

returns carrier wave table

Returns:: carrier wave table

Channel * FMUnit::modulationWaveTable ( )

returns modulation wave table

Returns:: modulation wave table

void FMUnit::setWaveTable ( String pWaveTableName ) throw (SynthException)

set carrier and modulation wavetable

Parameters:

pWavetableName

wave table name

Exceptions:

SynthException

failed to set wave table

void FMUnit::setCarrierWaveTable ( String pWaveTableName ) throw (SynthException)

set carrier wavetable

Parameters:

pWavetableName

wave table name

Exceptions:

SynthException

failed to set wave table

void FMUnit::setModulationWaveTable ( String pWaveTableName ) throw (SynthException)

set modulation wavetable

Parameters:

pWavetableName

wave table name

Exceptions:

SynthException

failed to set wave table

void FMUnit::process ( Buffer * pBuffer ) throw (SynthException) [virtual]

processes buffer

Parameters:

pBuffer

buffer to process

two step processing procedure:
1. calls process function of all it's input ports
2. as soon as these other processing functions return, it changes the buffer according to it's function

Reimplemented from iso::synth::InputUnit.

base::String FMUnit::info	(	bool	pPropagate = `false`,
		bool	pShowPorts = `true`
	)			const `[virtual]`

obtain textual unit information

Parameters:

	pPropagate	if true, the unit calls the info methods of its input ports
	pShowPorts	print port information

Returns:: String containing unit information

Reimplemented from iso::synth::InputUnit.

void FMUnit::init ( ) [protected]

initializes wavetable and control ports

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	pOstream,
		const FMUnit &	pUnit
	)			`[friend]`

print unit information

Member Data Documentation

const base::String FMUnit::sClassName [static]

default name

Reimplemented from iso::synth::InputUnit.

unsigned int FMUnit::sUnitCount [static, protected]

total number of units created so far

Reimplemented from iso::synth::InputUnit.

ControlPort* iso::synth::FMUnit::mCarrierFrequency [protected]

carrier frequency control port

ControlPort* iso::synth::FMUnit::mCarrierAmplitude [protected]

carrier amplitude control port

ControlPort* iso::synth::FMUnit::mModulationFrequency [protected]

modulation frequency control port

ControlPort* iso::synth::FMUnit::mModulationIndex [protected]

modulation index port

Frame* iso::synth::FMUnit::mCarrierPhaseOffsetBuffer [protected]

current carrier phase offsets

Frame* iso::synth::FMUnit::mModulationPhaseOffsetBuffer [protected]

current modulation phase offsets

String iso::synth::FMUnit::mCarrierWaveTableName [protected]

carrier wave table name

String iso::synth::FMUnit::mModulationWaveTableName [protected]

modulation wave table name

Channel* iso::synth::FMUnit::mCarrierWaveTable [protected]

carrier wave table buffer

Channel* iso::synth::FMUnit::mModulationWaveTable [protected]

modulation wave table buffer

sample iso::synth::FMUnit::mCarrierBaseFrequency [protected]

carrier frequency of wave in carrier wave table at mRate

sample iso::synth::FMUnit::mModulationBaseFrequency [protected]

modulation frequency of wave in modulation wave table at mRate

InterpolationType iso::synth::FMUnit::mInterpolationType [protected]

interpolation type

sample iso::synth::FMUnit::mCarrierWaveTableSize [protected]

carrier wave table size

sample iso::synth::FMUnit::mModulationWaveTableSize [protected]

modulation wave table size

sample iso::synth::FMUnit::mCarrierFreqScale [protected]

sample iso::synth::FMUnit::mModulationFreqScale [protected]

The documentation for this class was generated from the following files:

/Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/gen/iso_synth_fm_unit.h
/Users/dbisig/programming/swarms/trunk/synth/trunk/code/unit/gen/iso_synth_fm_unit.cpp

Generated on Fri Feb 25 14:18:44 2011 for synth by

1.5.1

iso::synth::FMUnit Class Reference

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
