iso::flock::TargetParameterBehavior Class Reference

shift the values of an input parameter towards those of a target parameter More...

#include <iso_flock_target_parameter_behavior.h>

Inherits iso::flock::Behavior.

Inheritance diagram for iso::flock::TargetParameterBehavior:

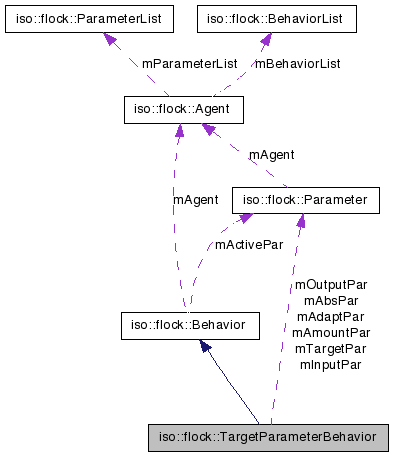

[legend]Collaboration diagram for iso::flock::TargetParameterBehavior:

[legend]List of all members.

Public Member Functions
	TargetParameterBehavior (const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create behavior
	TargetParameterBehavior (Agent *pAgent, const base::String &pBehaviorName, const base::String &pInputParameterString, const base::String &pOutputParameterString) throw (FlockException)
	create behavior
	~TargetParameterBehavior ()
	destructor
virtual Behavior *	create (const base::String &pBehaviorName, Agent *pAgent) const throw (FlockException)
	create copy of behavior
virtual Behavior *	create (const base::String &pInputParameterString, const base::String &pOutputParameterString) const
	create copy of behavior
void	act ()
	perform behavior
Protected Attributes
Parameter *	mInputPar
Parameter *	mOutputPar
	input parameter
Parameter *	mTargetPar
	output parameter
Parameter *	mAdaptPar
	target parameter
Parameter *	mAmountPar
	adapt parameter
Parameter *	mAbsPar
	behavior amount parameter
math::Vector< real >	mDiffValues
	treat differences as absolute values

---

Detailed Description

shift the values of an input parameter towards those of a target parameter

values of an input parameter towards those of a target parameter

This behavior shifts the values of an input parameter towards those of a target parameter
The internal adapt parameter controls for each dimension how far the values are shifted: 0: no shift at all, 1: full shift
The internal amount parameter controls for all dimensions how far the values are shifted: 0: no shift at all, 1: full shift
The effect of the amount and adapt parameters is combined
The internal absolute parameter controls is the shiting happens towards absolute or non absolute values

Input Parameter:
type: InputParameter dim: nD neighbors: ignore

Output Parameter:
type: OutputParameter dim: nD neighbors: ignore

Internal Parameter:
name: xxx_target dim: nD defaultValue: 0.0
name: xxx_adapt dim: nD defaultValue: 1.0
name: xxx_amount dim: 1D defaultValue: 0.1
name: xxx_absolute dim: 1D defaultValue: 0.0

Created by Daniel Bisig on 4/21/07.

---

Constructor & Destructor Documentation

TargetParameterBehavior::TargetParameterBehavior	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create behavior

Parameters:

	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

TargetParameterBehavior::TargetParameterBehavior	(	Agent *	pAgent,
		const base::String &	pBehaviorName,
		const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			throw (FlockException)

create behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior
	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

Exceptions:

FlockException

wrong number of type of parameters

TargetParameterBehavior::~TargetParameterBehavior

(

)

destructor

---

Member Function Documentation

Behavior * TargetParameterBehavior::create	(	const base::String &	pBehaviorName,
		Agent *	pAgent
	)			const throw (FlockException) [virtual]

create copy of behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior

Returns:

new behavior

Exceptions:

FlockException

wrong number of type of parameters

Implements iso::flock::Behavior.

Behavior * TargetParameterBehavior::create	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			const [virtual]

create copy of behavior

Parameters:

	pInputParameterString	input parameter string
	pOutputParameterString	output parameter string

Returns:

new behavior

Implements iso::flock::Behavior.

void TargetParameterBehavior::act

(

)

[virtual]

perform behavior

Implements iso::flock::Behavior.

---

Member Data Documentation

Parameter* iso::flock::TargetParameterBehavior::mInputPar [protected]

Parameter* iso::flock::TargetParameterBehavior::mOutputPar [protected]

input parameter

Parameter* iso::flock::TargetParameterBehavior::mTargetPar [protected]

output parameter

Parameter* iso::flock::TargetParameterBehavior::mAdaptPar [protected]

target parameter

Parameter* iso::flock::TargetParameterBehavior::mAmountPar [protected]

adapt parameter

Parameter* iso::flock::TargetParameterBehavior::mAbsPar [protected]

behavior amount parameter

math::Vector<real> iso::flock::TargetParameterBehavior::mDiffValues [protected]

treat differences as absolute values

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_target_parameter_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_target_parameter_behavior.cpp

---
