iso::flock::StatisticsBehavior Class Reference

statistics behavior More...

#include <iso_flock_statistics_behavior.h>

Inherits iso::flock::SwarmBehavior.

Inheritance diagram for iso::flock::StatisticsBehavior:

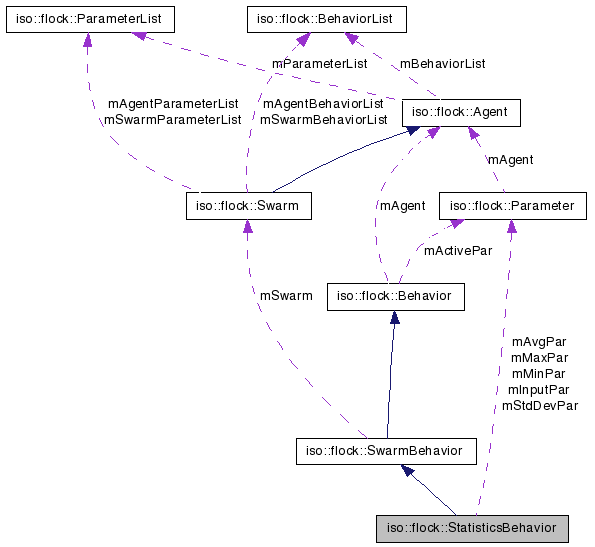

[legend]Collaboration diagram for iso::flock::StatisticsBehavior:

[legend]List of all members.

Public Member Functions
	StatisticsBehavior (const base::String &pInputSwarmParameterString, const base::String &pInputAgentParameterString, const base::String &pOutputSwarmParameterString, const base::String &pOutputAgentParameterString)
	create swarm behavior
	StatisticsBehavior (Swarm *pSwarm, const base::String &pSwarmBehaviorName, const base::String &pInputSwarmParameterString, const base::String &pInputAgentParameterString, const base::String &pOutputSwarmParameterString, const base::String &pOutputAgentParameterString) throw (FlockException)
	create swarm behavior
	~StatisticsBehavior ()
	destructor
virtual Behavior *	create (const base::String &pBehaviorName, Agent *pSwarm) const throw (FlockException)
	create copy of behavior
virtual Behavior *	create (const base::String &pInputSwarmParameterString, const base::String &pInputAgentParameterString, const base::String &pOutputSwarmParameterString, const base::String &pOutputAgentParameterString) const
	create copy of behavior
void	act ()
	perform behavior
Protected Attributes
Parameter *	mInputPar
Parameter *	mMinPar
	input parameter
Parameter *	mMaxPar
	minimum value parameter (internal)
Parameter *	mAvgPar
	maximum value parameter (internal)
Parameter *	mStdDevPar
	average value parameter (internal)
unsigned int	mInputParIndex
	standard deviation parameter (internal)
Vector< float >	mSquareSum
	input parameter index

---

Detailed Description

statistics behavior

A swarm behavior that conducts a very simple statistical analysis on the values of an agent input parameter and stores the result in internal parameters
The statistical output includes: minimum parameter value, maximum parameter value, average parameter value, standard deviation of agent parameters Input Parameter:
type: InputParameter dim: nD neighbors: ignore

Internal Parameter:
name: xxx_minimum dim: nD defaultValue: na
name: xxx_maximum dim: nD defaultValue: na
name: xxx_average dim: nD defaultValue: na
name: xxx_stdDev dim: nD defaultValue: na

Created by Daniel Bisig on 8/1/08.

---

Constructor & Destructor Documentation

StatisticsBehavior::StatisticsBehavior	(	const base::String &	pInputSwarmParameterString,
		const base::String &	pInputAgentParameterString,
		const base::String &	pOutputSwarmParameterString,
		const base::String &	pOutputAgentParameterString
	)

create swarm behavior

Parameters:

	pInputSwarmParameterString	input swarm parameter string (parameters are space separated)
	pInputAgentParameterString	input agent parameter string (parameters are space separated)
	pOutputSwarmParameterString	output swarm parameter string (paramaters are space separated)
	pOutputAgentParameterString	output agent parameter string (paramaters are space separated)

StatisticsBehavior::StatisticsBehavior	(	Swarm *	pSwarm,
		const base::String &	pSwarmBehaviorName,
		const base::String &	pInputSwarmParameterString,
		const base::String &	pInputAgentParameterString,
		const base::String &	pOutputSwarmParameterString,
		const base::String &	pOutputAgentParameterString
	)			throw (FlockException)

create swarm behavior

Parameters:

	pSwarm	reference to swarm to which this behavior is added
	pSwarmBehaviorName	swarm behavior name
	pInputSwarmParameterString	input swarm parameter string (parameters are space separated)
	pInputAgentParameterString	input agent parameter string (parameters are space separated)
	pOutputSwarmParameterString	output swarm parameter string (parameters are space separated)
	pOutputAgentParameterString	output agent parameter string (parameters are space separated)

StatisticsBehavior::~StatisticsBehavior

(

)

destructor

---

Member Function Documentation

Behavior * StatisticsBehavior::create	(	const base::String &	pBehaviorName,
		Agent *	pSwarm
	)			const throw (FlockException) [virtual]

create copy of behavior

Parameters:

	pBehaviorName	name of behavior
	pSwarm	swarm this behavior belongs to

Returns:

new behavior

Exceptions:

FlockException

wrong number of type of parameters

Implements iso::flock::SwarmBehavior.

Behavior * StatisticsBehavior::create	(	const base::String &	pInputSwarmParameterString,
		const base::String &	pInputAgentParameterString,
		const base::String &	pOutputSwarmParameterString,
		const base::String &	pOutputAgentParameterString
	)			const [virtual]

create copy of behavior

Parameters:

	pInputParameterString	input parameter string
	pOutputParameterString	output parameter string

Returns:

new behavior

Implements iso::flock::SwarmBehavior.

void StatisticsBehavior::act

(

)

[virtual]

perform behavior

Implements iso::flock::Behavior.

---

Member Data Documentation

Parameter* iso::flock::StatisticsBehavior::mInputPar [protected]

Parameter* iso::flock::StatisticsBehavior::mMinPar [protected]

input parameter

Parameter* iso::flock::StatisticsBehavior::mMaxPar [protected]

minimum value parameter (internal)

Parameter* iso::flock::StatisticsBehavior::mAvgPar [protected]

maximum value parameter (internal)

Parameter* iso::flock::StatisticsBehavior::mStdDevPar [protected]

average value parameter (internal)

unsigned int iso::flock::StatisticsBehavior::mInputParIndex [protected]

standard deviation parameter (internal)

Vector<float> iso::flock::StatisticsBehavior::mSquareSum [protected]

input parameter index

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_statistics_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_statistics_behavior.cpp

---
