iso::flock::ParameterPrintBehavior Class Reference

print parameter to console More...

#include <iso_flock_parameter_print_behavior.h>

Inherits iso::flock::Behavior.

Inheritance diagram for iso::flock::ParameterPrintBehavior:

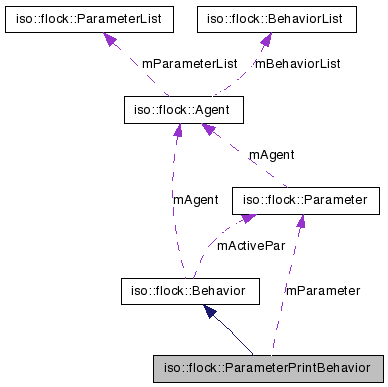

[legend]Collaboration diagram for iso::flock::ParameterPrintBehavior:

[legend]List of all members.

Public Member Functions
	ParameterPrintBehavior (const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create behavior
	ParameterPrintBehavior (Agent *pAgent, const base::String &pBehaviorName, const base::String &pInputParameterString, const base::String &pOutputParameterString) throw (FlockException)
	create behavior
	~ParameterPrintBehavior ()
	destructor
virtual Behavior *	create (const base::String &pBehaviorName, Agent *pAgent) const throw (FlockException)
	create copy of behavior
virtual Behavior *	create (const base::String &pInputParameterString, const base::String &pOutputParameterString) const
	create copy of behavior
void	act ()
	perform behavior
Protected Attributes
Parameter *	mParameter

---

Detailed Description

print parameter to console

to console

The Behavior prints parameter to console
It prints the agent name and the parameter's value and backup value
Might come in handy for debugging purposes

Input Parameter:
type: any dim: nD neighbors: ignored

Output Parameter:

Internal Parameter:
name: xxx_active dim: 1D defaultValue: 0.1

Created by Daniel Bisig on 05/12/08.

---

Constructor & Destructor Documentation

ParameterPrintBehavior::ParameterPrintBehavior	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create behavior

Parameters:

	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

ParameterPrintBehavior::ParameterPrintBehavior	(	Agent *	pAgent,
		const base::String &	pBehaviorName,
		const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			throw (FlockException)

create behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior
	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

Exceptions:

FlockException

wrong number of type of parameters

ParameterPrintBehavior::~ParameterPrintBehavior

(

)

destructor

---

Member Function Documentation

Behavior * ParameterPrintBehavior::create	(	const base::String &	pBehaviorName,
		Agent *	pAgent
	)			const throw (FlockException) [virtual]

create copy of behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior

Returns:

new behavior

Exceptions:

FlockException

wrong number of type of parameters

Implements iso::flock::Behavior.

Behavior * ParameterPrintBehavior::create	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			const [virtual]

create copy of behavior

Parameters:

	pInputParameterString	input parameter string
	pOutputParameterString	output parameter string

Returns:

new behavior

Implements iso::flock::Behavior.

void ParameterPrintBehavior::act

(

)

[virtual]

perform behavior

Implements iso::flock::Behavior.

---

Member Data Documentation

Parameter* iso::flock::ParameterPrintBehavior::mParameter [protected]

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_parameter_print_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_parameter_print_behavior.cpp

---
