iso::flock::OrbitBehavior Class Reference

cause agents to orbit around the positions of neighboring agents More...

#include <iso_flock_orbit_behavior.h>

Inherits iso::flock::Behavior.

Inheritance diagram for iso::flock::OrbitBehavior:

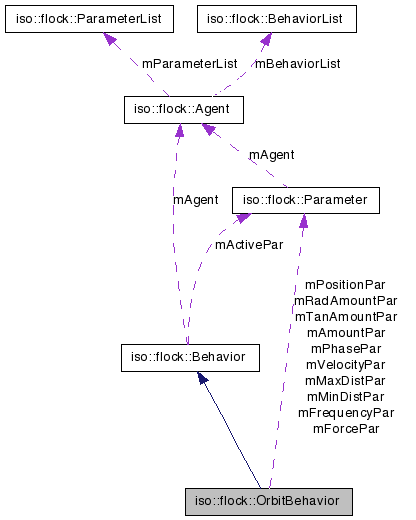

[legend]Collaboration diagram for iso::flock::OrbitBehavior:

[legend]List of all members.

Public Member Functions
	OrbitBehavior (const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create behavior
	OrbitBehavior (Agent *pAgent, const base::String &pBehaviorName, const base::String &pInputParameterString, const base::String &pOutputParameterString) throw (FlockException)
	create behavior
	~OrbitBehavior ()
	destructor
virtual Behavior *	create (const base::String &pBehaviorName, Agent *pAgent) const throw (FlockException)
	create copy of behavior
virtual Behavior *	create (const base::String &pInputParameterString, const base::String &pOutputParameterString) const
	create copy of behavior
void	act ()
	perform behavior
Protected Attributes
Parameter *	mPositionPar
Parameter *	mVelocityPar
	position parameter (input)
Parameter *	mForcePar
	velocity parameter (input)
Parameter *	mFrequencyPar
	force parameter (output)
Parameter *	mPhasePar
	frequency parameter (internal)
Parameter *	mMinDistPar
	phase parameter (internal)
Parameter *	mMaxDistPar
	minimum distance parameter (internal)
Parameter *	mRadAmountPar
	maximum distance parameter (internal)
Parameter *	mTanAmountPar
	radial amount parameter (internal)
Parameter *	mAmountPar
	tangential amount parameter (internal)
space::NeighborGroup *	mPositionNeighbors
	behaviour amount parameter (internal)
math::Vector3< real >	mNormDirection
	position neighbor group
math::Vector3< real >	mNormVelocity
	brief normalized neighbor direction
math::Vector3< real >	mCrossVec
	normalized agent velocity
math::Vector3< real >	mCrossVec2
	vector cross product (norm dir, norm vel)
math::Vector< real >	mAvgDirection
	normalized agent velocity (cross vec, norm dir)
math::Vector< real >	mTmpForce
	avg of neighboring value directions

---

Detailed Description

cause agents to orbit around the positions of neighboring agents

to orbit around the positions of neighboring agents

This behavior causes agents to orbit around the positions of neighboring agents.
A cosine function that extends from the position of the neighboring agent establishes rings of concentric peaks and valleys to which the oribiting agent respond to.
Peaks in the cosine function are avoided by the orbiting agent.
Valleys in the cosine function attract the orbiting agent.
The frequency and position of the cosine function's peaks and valleys can be controlled via the phase abd frequency parameters.
The radAmount parameter controls the attraction and repulsion of the orbiting agent perpendicular to the rings of peaks and valleys
. The tanAmount parameter controls the acceleration of the orbiting agent in a tangential direction with respect to the rings of peaks and valleys
. The orbiting behavior is active when an agent is within a distance from the neighbor agent that lies within the values of minDist and maxDist parameters.
The amount parameter controls the strength of the orbiting behavior.

The Behavior causes Agent to move withing a ring
Input Parameter:
type: position dim: nD neighbors: required
type: velocity dim: nD neighbors: ignored

Output Parameter:
type: force dim: nD write: add

Internal Parameter:
name: xxx_frequency dim: 1D defaultValue: 2.0
name: xxx_phase dim: 1D defaultValue: 0.0
name: xxx_minDist dim: 1D defaultValue: 0.0
name: xxx_maxDist dim: 1D defaultValue: 0.5
name: xxx_radAmount dim: 1D defaultValue: 3.0
name: xxx_tanAmount dim: 1D defaultValue: 6.0
name: xxx_amount dim: 1D defaultValue: 0.1

Created by Daniel Bisig, Tasuo Unemi, Koichiro Mori, John Flury on 11/16/07.

---

Constructor & Destructor Documentation

OrbitBehavior::OrbitBehavior	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create behavior

Parameters:

	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

OrbitBehavior::OrbitBehavior	(	Agent *	pAgent,
		const base::String &	pBehaviorName,
		const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			throw (FlockException)

create behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior
	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

Exceptions:

FlockException

wrong number of type of parameters

OrbitBehavior::~OrbitBehavior

(

)

destructor

---

Member Function Documentation

Behavior * OrbitBehavior::create	(	const base::String &	pBehaviorName,
		Agent *	pAgent
	)			const throw (FlockException) [virtual]

create copy of behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior

Returns:

new behavior

Exceptions:

FlockException

wrong number of type of parameters

Implements iso::flock::Behavior.

Behavior * OrbitBehavior::create	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			const [virtual]

create copy of behavior

Parameters:

	pInputParameterString	input parameter string
	pOutputParameterString	output parameter string

Returns:

new behavior

Implements iso::flock::Behavior.

void OrbitBehavior::act

(

)

[virtual]

perform behavior

Implements iso::flock::Behavior.

---

Member Data Documentation

Parameter* iso::flock::OrbitBehavior::mPositionPar [protected]

Parameter* iso::flock::OrbitBehavior::mVelocityPar [protected]

position parameter (input)

Parameter* iso::flock::OrbitBehavior::mForcePar [protected]

velocity parameter (input)

Parameter* iso::flock::OrbitBehavior::mFrequencyPar [protected]

force parameter (output)

Parameter* iso::flock::OrbitBehavior::mPhasePar [protected]

frequency parameter (internal)

Parameter* iso::flock::OrbitBehavior::mMinDistPar [protected]

phase parameter (internal)

Parameter* iso::flock::OrbitBehavior::mMaxDistPar [protected]

minimum distance parameter (internal)

Parameter* iso::flock::OrbitBehavior::mRadAmountPar [protected]

maximum distance parameter (internal)

Parameter* iso::flock::OrbitBehavior::mTanAmountPar [protected]

radial amount parameter (internal)

Parameter* iso::flock::OrbitBehavior::mAmountPar [protected]

tangential amount parameter (internal)

space::NeighborGroup* iso::flock::OrbitBehavior::mPositionNeighbors [protected]

behaviour amount parameter (internal)

math::Vector3<real> iso::flock::OrbitBehavior::mNormDirection [protected]

position neighbor group

math::Vector3<real> iso::flock::OrbitBehavior::mNormVelocity [protected]

brief normalized neighbor direction

math::Vector3<real> iso::flock::OrbitBehavior::mCrossVec [protected]

normalized agent velocity

math::Vector3<real> iso::flock::OrbitBehavior::mCrossVec2 [protected]

vector cross product (norm dir, norm vel)

math::Vector<real> iso::flock::OrbitBehavior::mAvgDirection [protected]

normalized agent velocity (cross vec, norm dir)

math::Vector<real> iso::flock::OrbitBehavior::mTmpForce [protected]

avg of neighboring value directions

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_orbit_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_orbit_behavior.cpp

---
