iso::flock::EnvBehavior Class Reference

#include <iso_flock_env_behavior.h>

Inherits iso::flock::Behavior.

Inherited by iso::flock::EnvAgentInteractBehavior, iso::flock::EnvClampBehavior, iso::flock::EnvDecayBehavior, iso::flock::EnvDiffusionBehavior, iso::flock::EnvGiererMeinhardtBehavior, and iso::flock::EnvGrayScottBehavior.

Inheritance diagram for iso::flock::EnvBehavior:

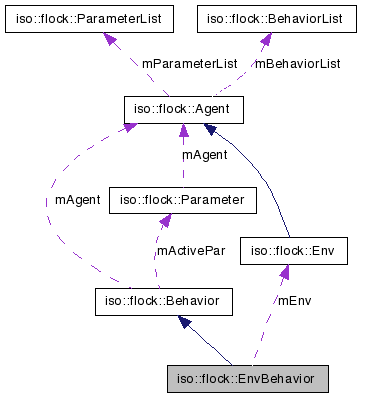

[legend]Collaboration diagram for iso::flock::EnvBehavior:

[legend]List of all members.

Public Member Functions
	EnvBehavior (const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create environment behavior
	EnvBehavior (Env *pEnv, const base::String &pBehaviorName, const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create environment behavior
virtual	~EnvBehavior ()
	destructor
virtual void	act ()=0
	perform behavior
virtual base::String	info (int pPropagationLevel=0) const
	print behavior information
Protected Member Functions
	EnvBehavior ()
	default constructor
virtual void	createInputParameters () throw (FlockException)
	create input behavior parameters Exceptions: FlockException  failed to create input parameters
virtual void	createOutputParameters () throw (FlockException)
	create output behavior parameters Exceptions: FlockException  failed to create output parameters
Protected Attributes
Env *	mEnv
	create internal behavior parameter
QHash< base::String, base::String >	mInputAgentParameterNames
	environment this behavior belongs to
QHash< base::String, base::String >	mOutputAgentParameterNames
Friends
std::ostream &	operator<< (std::ostream &pOstream, const EnvBehavior &pBehavior)
	retrieve textual behavior info

---

Constructor & Destructor Documentation

EnvBehavior::EnvBehavior	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create environment behavior

Parameters:

	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output parameter string (paramaters are space separated)

EnvBehavior::EnvBehavior	(	Env *	pEnv,
		const base::String &	pBehaviorName,
		const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create environment behavior

Parameters:

	pEnv	reference to environment to which this behavior is added
	pBehaviorName	behavior name
	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output parameter string (paramaters are space separated)

EnvBehavior::~EnvBehavior

(

)

[virtual]

destructor

EnvBehavior::EnvBehavior

(

)

[protected]

default constructor

---

Member Function Documentation

virtual void iso::flock::EnvBehavior::act

(

)

[pure virtual]

perform behavior

Implements iso::flock::Behavior.

Implemented in iso::flock::EnvAgentInteractBehavior, iso::flock::EnvClampBehavior, iso::flock::EnvDecayBehavior, iso::flock::EnvDiffusionBehavior, iso::flock::EnvGiererMeinhardtBehavior, and iso::flock::EnvGrayScottBehavior.

base::String EnvBehavior::info

(

int

pPropagationLevel = 0

)

const [virtual]

print behavior information

Parameters:

pPropagationLevel

how far the propagation method proceeds through composite classes (-1: unlimited, 0: no proceeding, >0: limited proceeding)

Reimplemented from iso::flock::Behavior.

void EnvBehavior::createInputParameters

(

)

throw (FlockException) [protected, virtual]

create input behavior parameters

Exceptions:

FlockException

failed to create input parameters

Reimplemented from iso::flock::Behavior.

void EnvBehavior::createOutputParameters

(

)

throw (FlockException) [protected, virtual]

create output behavior parameters

Exceptions:

FlockException

failed to create output parameters

Reimplemented from iso::flock::Behavior.

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	pOstream,
		const EnvBehavior &	pBehavior
	)			[friend]

retrieve textual behavior info

Parameters:

	pOstream	output text stream
	pBehavior	behavior

---

Member Data Documentation

Env* iso::flock::EnvBehavior::mEnv [protected]

create internal behavior parameter

Parameters:

	pParameterName	name of parameter
	pValues	values of parameter

Returns:

parameter

creates an internal behavior parameter which is visible at the level of the agent (i.e. other behaviors can access it).
the name of the parameter is constructed as follows: behaviorName_parameterName.

QHash< base::String, base::String > iso::flock::EnvBehavior::mInputAgentParameterNames [protected]

environment this behavior belongs to

QHash< base::String, base::String > iso::flock::EnvBehavior::mOutputAgentParameterNames [protected]

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/core/flock/behavior/iso_flock_env_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/core/flock/behavior/iso_flock_env_behavior.cpp

---
