iso::flock::CircularBehavior Class Reference

cause Agent to move withing a ring More...

#include <iso_flock_circular_behavior.h>

Inherits iso::flock::Behavior.

Inheritance diagram for iso::flock::CircularBehavior:

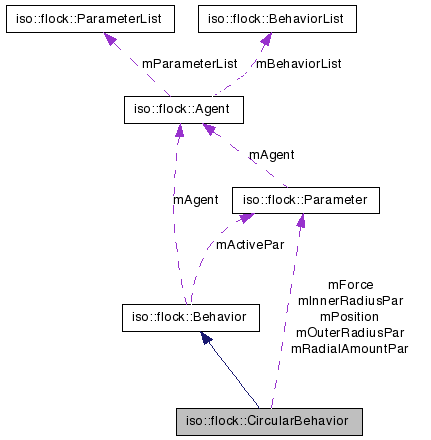

[legend]Collaboration diagram for iso::flock::CircularBehavior:

[legend]List of all members.

Public Member Functions
	CircularBehavior (const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create behavior
	CircularBehavior (Agent *pAgent, const base::String &pBehaviorName, const base::String &pInputParameterString, const base::String &pOutputParameterString) throw (FlockException)
	create behavior
	~CircularBehavior ()
	destructor
virtual Behavior *	create (const base::String &pBehaviorName, Agent *pAgent) const throw (FlockException)
	create copy of behavior
virtual Behavior *	create (const base::String &pInputParameterString, const base::String &pOutputParameterString) const
	create copy of behavior
void	act ()
	perform behavior
Protected Attributes
Parameter *	mPosition
Parameter *	mForce
	position parameter (input)
Parameter *	mInnerRadiusPar
	force parameter (output)
Parameter *	mOuterRadiusPar
	inner radius parameter (internal)
Parameter *	mRadialAmountPar
	outer radius parameter (internal)
math::Vector3< real >	mCenterVec
	radial amount parameter (internal)
math::Vector3< real >	mNormZVec
	vector pointing from agent position towards origin
math::Vector3< real >	mNormTangentVec
	noralized vector pointing in positive z-direction

---

Detailed Description

cause Agent to move withing a ring

to move withing a ring

The Behavior causes Agent to move withing a ring
Input Parameter:
type: position dim: nD neighbors: ignore

Output Parameter:
type: force dim: nD write: add

Internal Parameter:
name: xxx_innerRadius dim: 1D defaultValue: 2.0
name: xxx_outerRadius dim: 1D defaultValue: 3.0
name: xxx_radialAmount dim: 1D defaultValue: 0.1
name: xxx_active dim: 1D defaultValue: 1.0

Created by Daniel Bisig, Tasuo Unemi, Koichiro Mori, John Flury on 11/16/07.

---

Constructor & Destructor Documentation

CircularBehavior::CircularBehavior	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create behavior

Parameters:

	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

CircularBehavior::CircularBehavior	(	Agent *	pAgent,
		const base::String &	pBehaviorName,
		const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			throw (FlockException)

create behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior
	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

Exceptions:

FlockException

wrong number of type of parameters

CircularBehavior::~CircularBehavior

(

)

destructor

---

Member Function Documentation

Behavior * CircularBehavior::create	(	const base::String &	pBehaviorName,
		Agent *	pAgent
	)			const throw (FlockException) [virtual]

create copy of behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior

Returns:

new behavior

Exceptions:

FlockException

wrong number of type of parameters

Implements iso::flock::Behavior.

Behavior * CircularBehavior::create	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			const [virtual]

create copy of behavior

Parameters:

	pInputParameterString	input parameter string
	pOutputParameterString	output parameter string

Returns:

new behavior

Implements iso::flock::Behavior.

void CircularBehavior::act

(

)

[virtual]

perform behavior

Implements iso::flock::Behavior.

---

Member Data Documentation

Parameter* iso::flock::CircularBehavior::mPosition [protected]

Parameter* iso::flock::CircularBehavior::mForce [protected]

position parameter (input)

Parameter* iso::flock::CircularBehavior::mInnerRadiusPar [protected]

force parameter (output)

Parameter* iso::flock::CircularBehavior::mOuterRadiusPar [protected]

inner radius parameter (internal)

Parameter* iso::flock::CircularBehavior::mRadialAmountPar [protected]

outer radius parameter (internal)

math::Vector3<real> iso::flock::CircularBehavior::mCenterVec [protected]

radial amount parameter (internal)

math::Vector3<real> iso::flock::CircularBehavior::mNormZVec [protected]

vector pointing from agent position towards origin

math::Vector3<real> iso::flock::CircularBehavior::mNormTangentVec [protected]

noralized vector pointing in positive z-direction

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_circular_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_circular_behavior.cpp

---
