iso::flock::BoundaryWrapBehavior Class Reference

creates periodic boundary for Agent 's position More...

#include <iso_flock_boundary_wrap_behavior.h>

Inherits iso::flock::Behavior.

Inheritance diagram for iso::flock::BoundaryWrapBehavior:

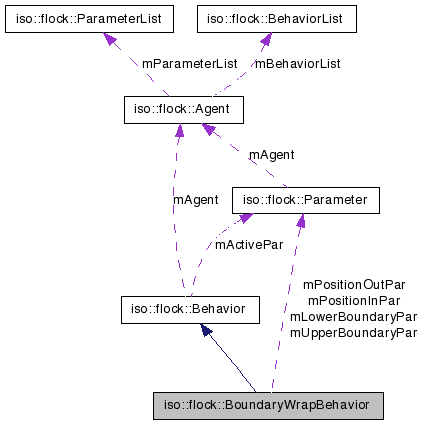

[legend]Collaboration diagram for iso::flock::BoundaryWrapBehavior:

[legend]List of all members.

Public Member Functions
	BoundaryWrapBehavior (const base::String &pInputParameterString, const base::String &pOutputParameterString)
	create behavior
	BoundaryWrapBehavior (Agent *pAgent, const base::String &pBehaviorName, const base::String &pInputParameterString, const base::String &pOutputParameterString) throw (FlockException)
	create behavior
	~BoundaryWrapBehavior ()
	destructor
virtual Behavior *	create (const base::String &pBehaviorName, Agent *pAgent) const throw (FlockException)
	create copy of behavior
virtual Behavior *	create (const base::String &pInputParameterString, const base::String &pOutputParameterString) const
	create copy of behavior
void	act ()
	perform behavior
Protected Attributes
Parameter *	mPositionInPar
Parameter *	mPositionOutPar
	position parameter (input)
Parameter *	mLowerBoundaryPar
	position parameter (output)
Parameter *	mUpperBoundaryPar
	lower boundary parameter (internal)

---

Detailed Description

creates periodic boundary for Agent 's position

boundary for Agent 's position

Behavior creates periodic boundary for Agent 's position.
The behavior is normally meant to restrict an Agent 's position to a cubic region
by mirroring the position to the opposite site of the cube whenever it exceeds the cube's boundaries.

Input Parameter:
type: position dim: nD neighbors: ignore

Output Parameter:
type: position dim: nD write: replace

Internal Parameter:
name: xxx_lowerBoundary dim: nD defaultValue: -1.0
name: xxx_upperBoundary dim: nD defaultValue: 1.0
name: xxx_active dim: 1D defaultValue: 1.0

Created by Daniel Bisig on 8/31/07.

---

Constructor & Destructor Documentation

BoundaryWrapBehavior::BoundaryWrapBehavior	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)

create behavior

Parameters:

	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

BoundaryWrapBehavior::BoundaryWrapBehavior	(	Agent *	pAgent,
		const base::String &	pBehaviorName,
		const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			throw (FlockException)

create behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior
	pInputParameterString	input parameter string (parameters are space separated)
	pOutputParameterString	output paramaters are space separated)

Exceptions:

FlockException

wrong number of type of parameters

BoundaryWrapBehavior::~BoundaryWrapBehavior

(

)

destructor

---

Member Function Documentation

Behavior * BoundaryWrapBehavior::create	(	const base::String &	pBehaviorName,
		Agent *	pAgent
	)			const throw (FlockException) [virtual]

create copy of behavior

Parameters:

	pAgent	agent this behavior belongs to
	pBehaviorName	name of behavior

Returns:

new behavior

Exceptions:

FlockException

wrong number of type of parameters

Implements iso::flock::Behavior.

Behavior * BoundaryWrapBehavior::create	(	const base::String &	pInputParameterString,
		const base::String &	pOutputParameterString
	)			const [virtual]

create copy of behavior

Parameters:

	pInputParameterString	input parameter string
	pOutputParameterString	output parameter string

Returns:

new behavior

Implements iso::flock::Behavior.

void BoundaryWrapBehavior::act

(

)

[virtual]

perform behavior

Implements iso::flock::Behavior.

---

Member Data Documentation

Parameter* iso::flock::BoundaryWrapBehavior::mPositionInPar [protected]

Parameter* iso::flock::BoundaryWrapBehavior::mPositionOutPar [protected]

position parameter (input)

Parameter* iso::flock::BoundaryWrapBehavior::mLowerBoundaryPar [protected]

position parameter (output)

Parameter* iso::flock::BoundaryWrapBehavior::mUpperBoundaryPar [protected]

lower boundary parameter (internal)

---

The documentation for this class was generated from the following files:

• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_boundary_wrap_behavior.h
• /Users/dbisig/programming/swarms/trunk/flock/trunk/code/behavior/iso_flock_boundary_wrap_behavior.cpp

---
